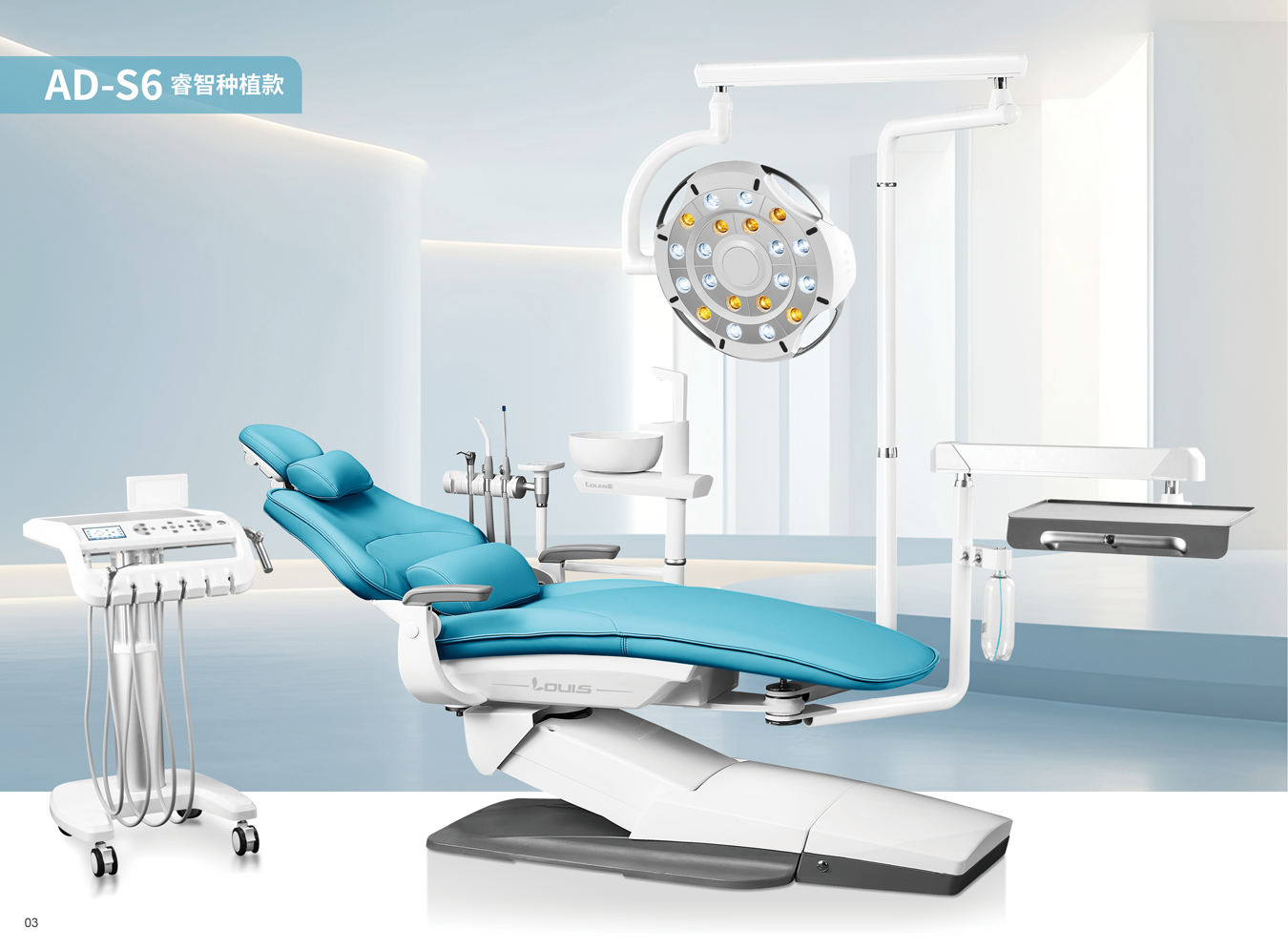

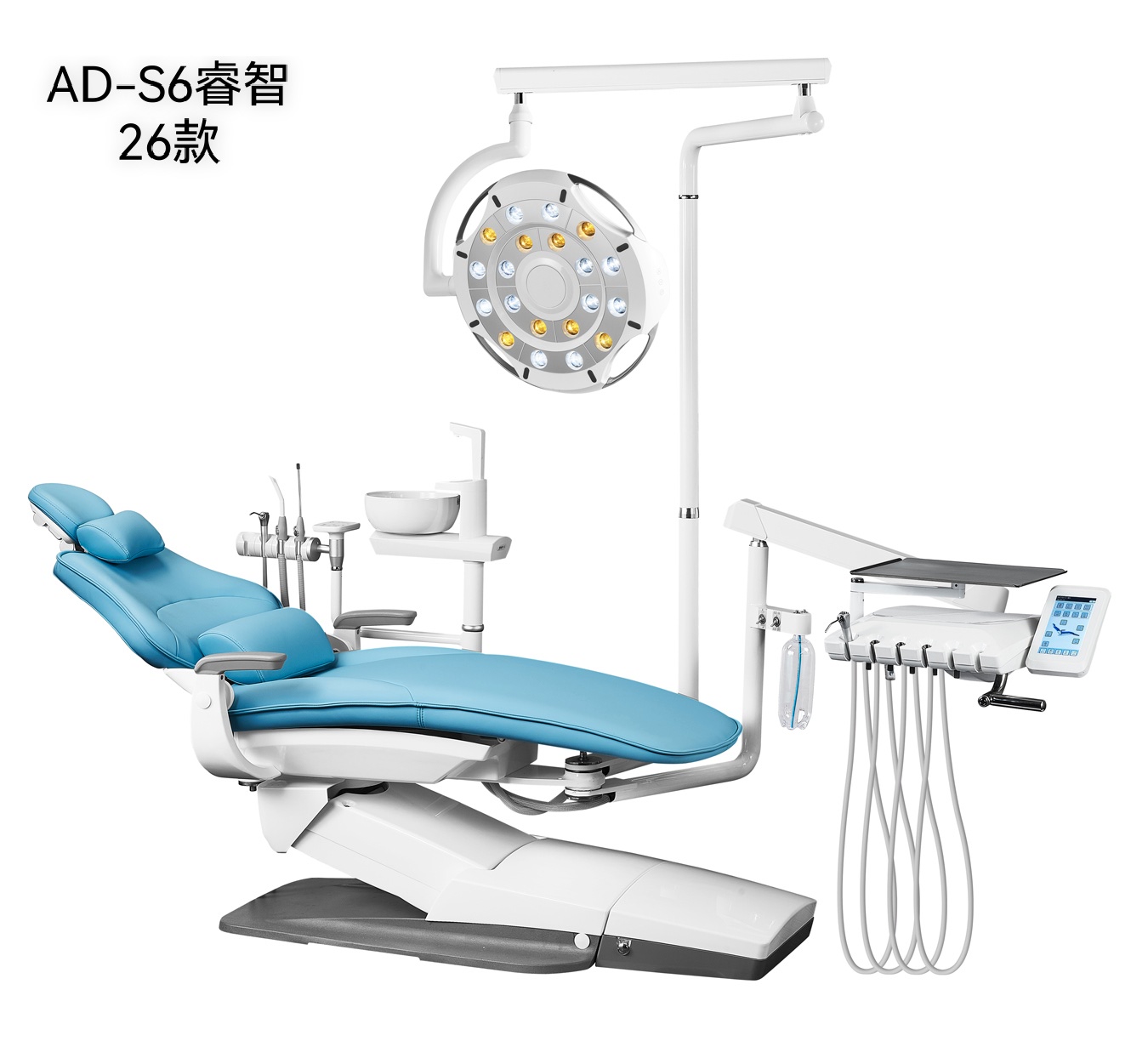

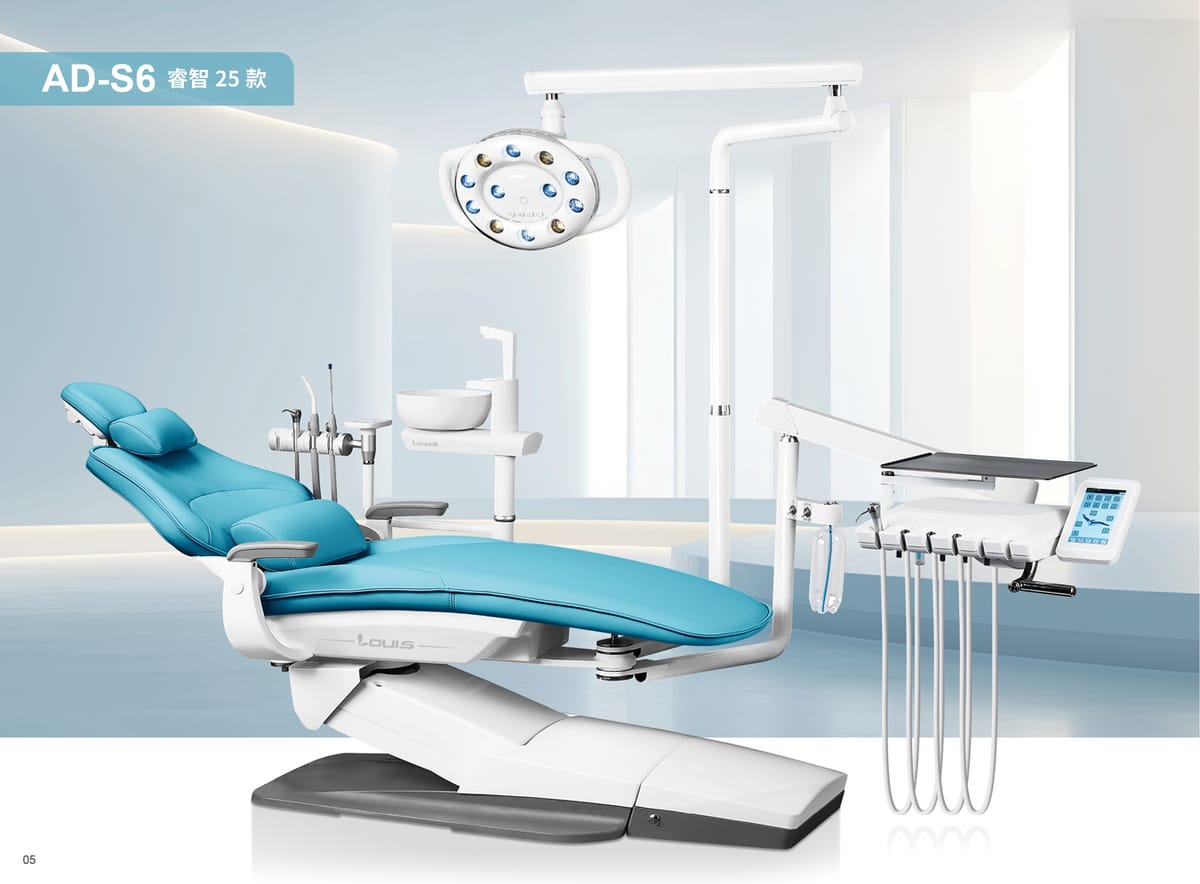

AD-S6（25/26）American style Dental chair for implant

Product Introduction

AD-S6 (25/26) model, as a dental chair based on the 3rd generation all-aluminum chair frame with linkage compensation, is equipped with a brand-new 7-inch medical LCD screen control system with 9 chair position memory, and is also available as a doctor's chair and a nurse's chair. The equipment adopts a double-layer instrument tray (with a 180° rotation function), a reusable high-temperature sterilized luxury silicone pad and stainless steel handles. The wide, comfortable and skin-friendly imported leather seats, along with lumbar and headrests, further reflect the comfort requirements for patients. The luxury dual-color 12-hole / 20-hole LED shadowless oral lamp can achieve manual and sensor bidirectional control functions (with digital display function), meeting the needs of daily treatment and surgical use. It has a freely adjustable light source to achieve anti-curing function, with an illuminance of 15000Lux- 6000Lux and a color temperature of 4000K-5300K. The whole machine is made of a large amount of die-cast aluminum material. The use of aluminum-structured chairs makes the product more durable and long-lasting. The hidden form side box design enables the release of six-handed operation space. The realization of the left and right hand operation functions is simple and fast, making it more practical in terms of product usage requirements.

Key Features

① The AD-S6(25/26) adopts the third-generation aluminum frame linkage compensation chair position design, with aluminum components accounting for approximately 80% of the product;

② The product can achieve the function of interchangeable operation between left and right hands, and the main control console is equipped with a 7-inch LCD system.

③ This product adopts the world's first leather pad massage and heating functions and has obtained an invention patent.

Factory Configuration

No.	QTY	Name
1	1 set	All-new third-generation linkage compensation electric dental chair
2	2 pcs	Imported DC silent motor 8000N+4000N
3	2 pcs	Imported Solenoid Valve
4	2 pcs	Three-way Syringe (Cold/Hot)
5	1 set	LCD screen main control system
6	1 set	Saliva Suction System
7	1 set	Purified Water System
8	1 pc	LED film viewing light (built-in)
9	1 set	Ultra-fine Skin-friendly Leather Cushion + Lumbar and Headrest cushion
10	1 set	Luxury 044 Doctor's Chair + Luxury 026 Nurse's Chair
11	1 set	Flushing and water supply systems
12	1 set	Luxury 20-bead LED Shadowless Oral Lamp
13	1 pc	Replaceable silicone anti-fouling cover for sterilized instrument trays
14	1 pc	F02 Stainless Steel Six-in-One Multifunctional Foot Control
15	1 set	Luxury cast aluminum one-handed control multi-functional headrest bracket
16	1 set	Detachable sterilizable ceramic spittoon
17	1 set	Linkage Compensation Chair Position Control Structure
18	1 set	German Imported Water and Air Pipelines
19	1 pcs	Stainless Steel Foot Pedal Tube
20	1 set	Integrated 6-position Hanger Assembly
21	1 set	Stainless steel handle bracket
22	1 set	Luxury 7-inch LCD screen control
23	1 set	Luxury cast aluminum base, backrest, bracket, base box, armrests, etc.

Packing Parameters

A1 Star Shine 26 (Standard Configuration):

Export Middle carton Dimensions:

• With legs: 142X110X120CM
• Without legs: 142X110X110CM

Export Middle carton N.W:

• With legs: 66.5 KG
• Without legs: 54.2KG

Standard product N.W: 197 KG Implant chair N.W: 224 KG 019 Doctor stool: 9.5KG Nurse stool: 7.7 KG

Middle cartons G.W (With legs): 281 KG Middle cartons G.W (Without legs): 269 KG

Implant type Middle cartons G.W (With legs): 306 KG Implant type Middle cartons G.W (Without legs): 295 KG

Product Features

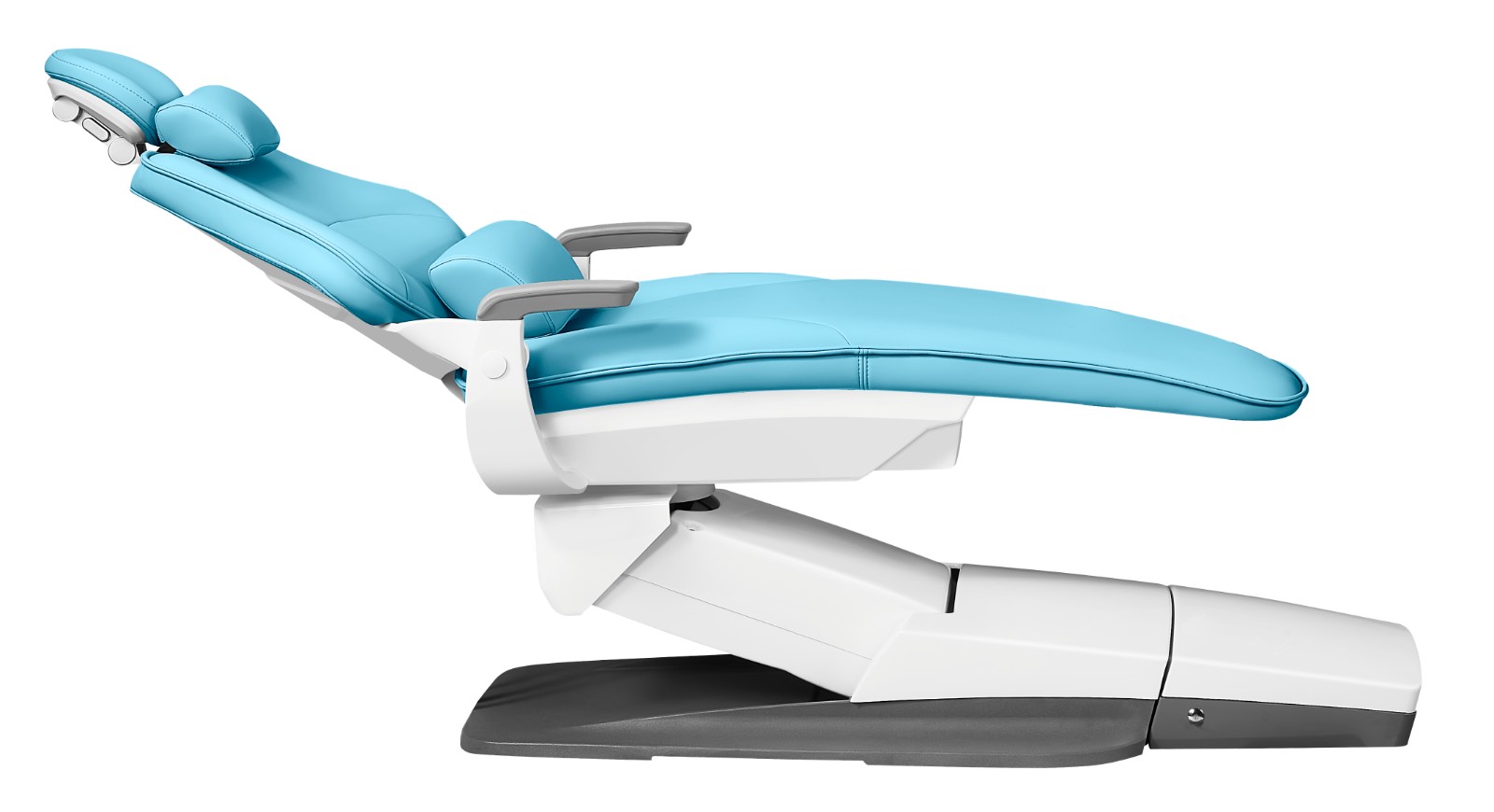

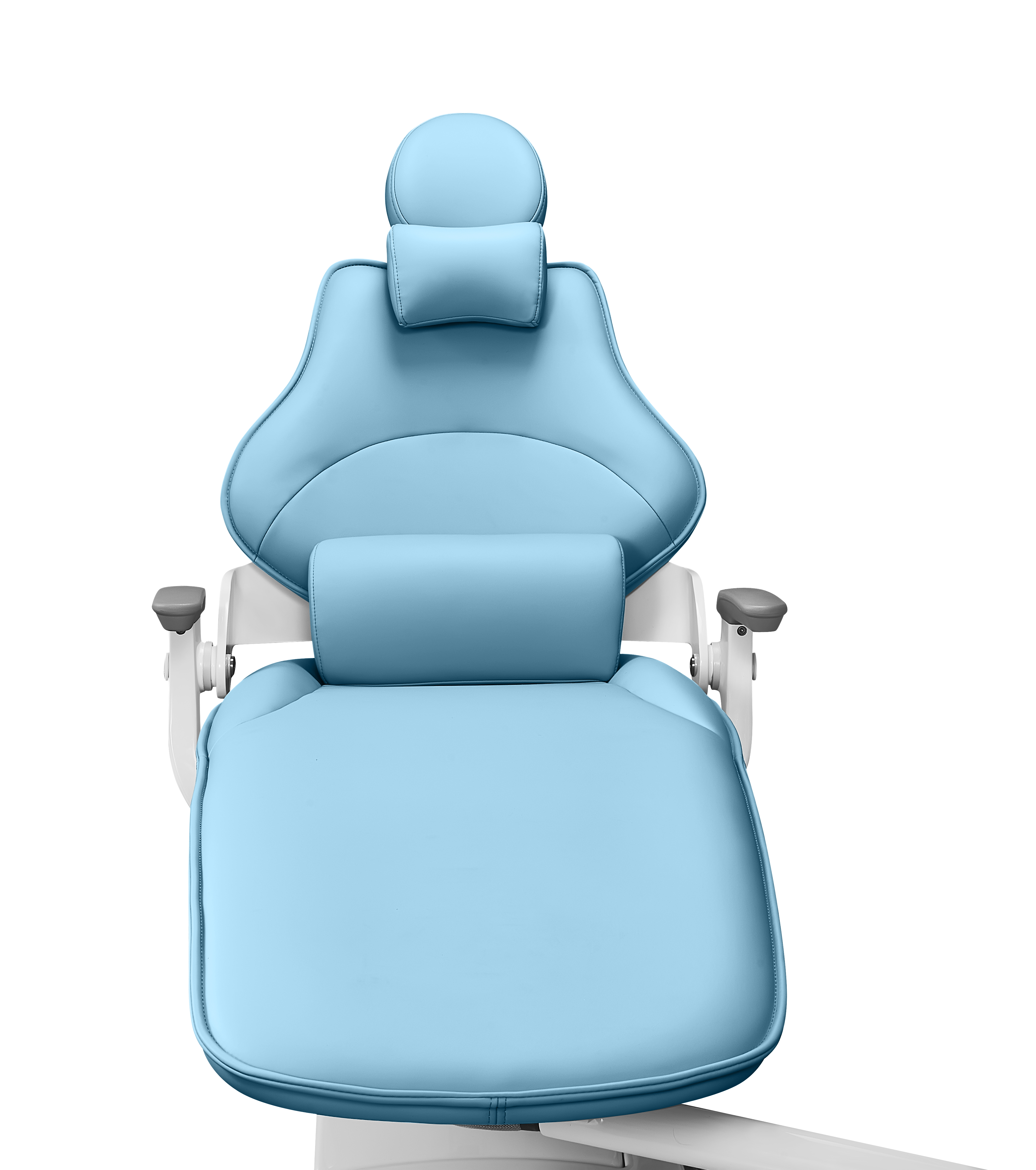

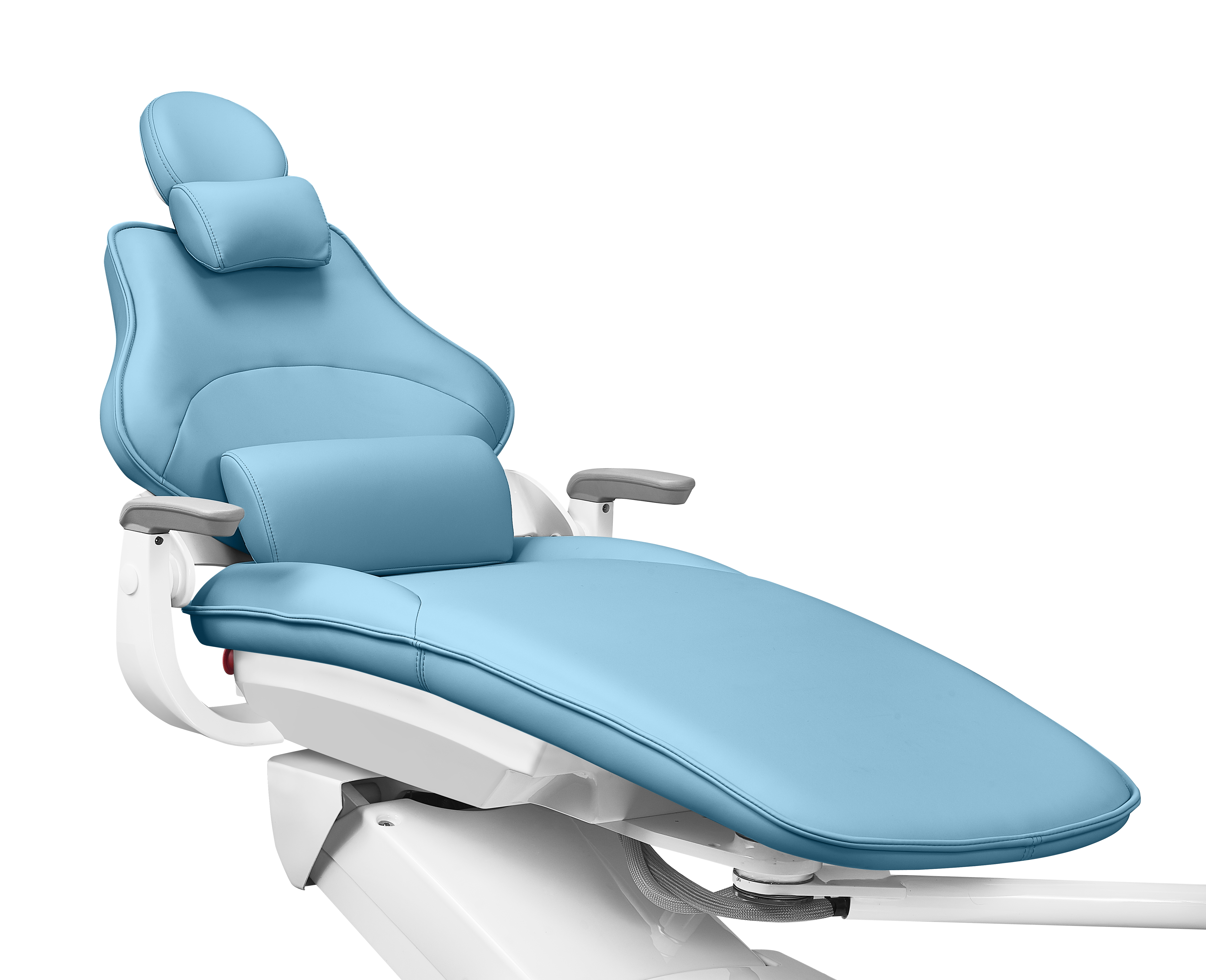

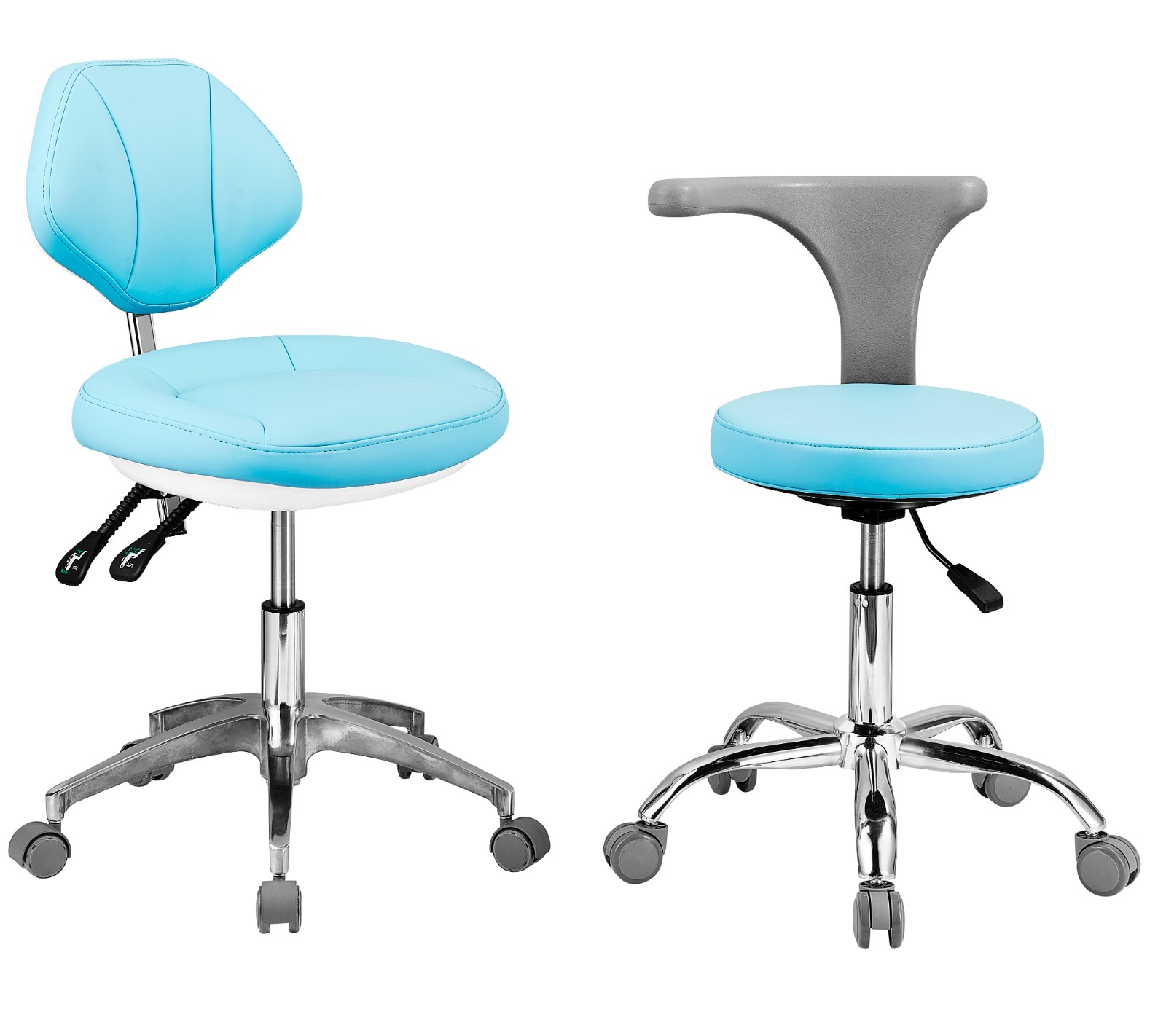

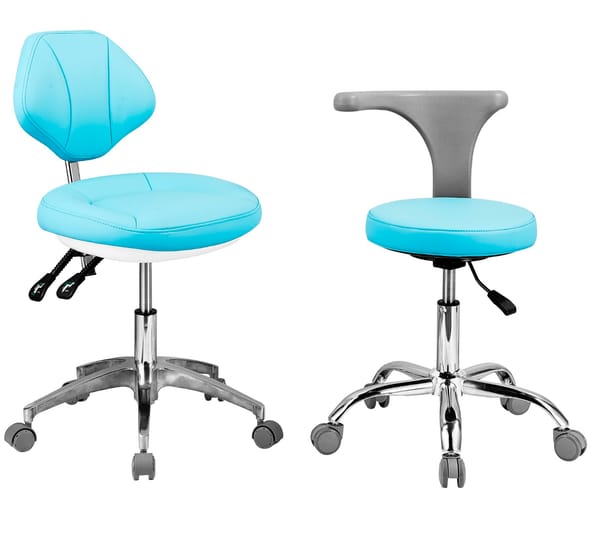

Leather Cushion The leather cushion of the dental chair is made of imported skin-friendly leather. The workmanship uses a sewn process of foam sponge and memory foam. It is also equipped with a lumbar pillow and a headrest, providing better overall comfort. The product is standardly equipped with a luxury doctor's chair (cast aluminum frame) and a nurse's chair. The dual-chair configuration meets the usage requirements for treatment.

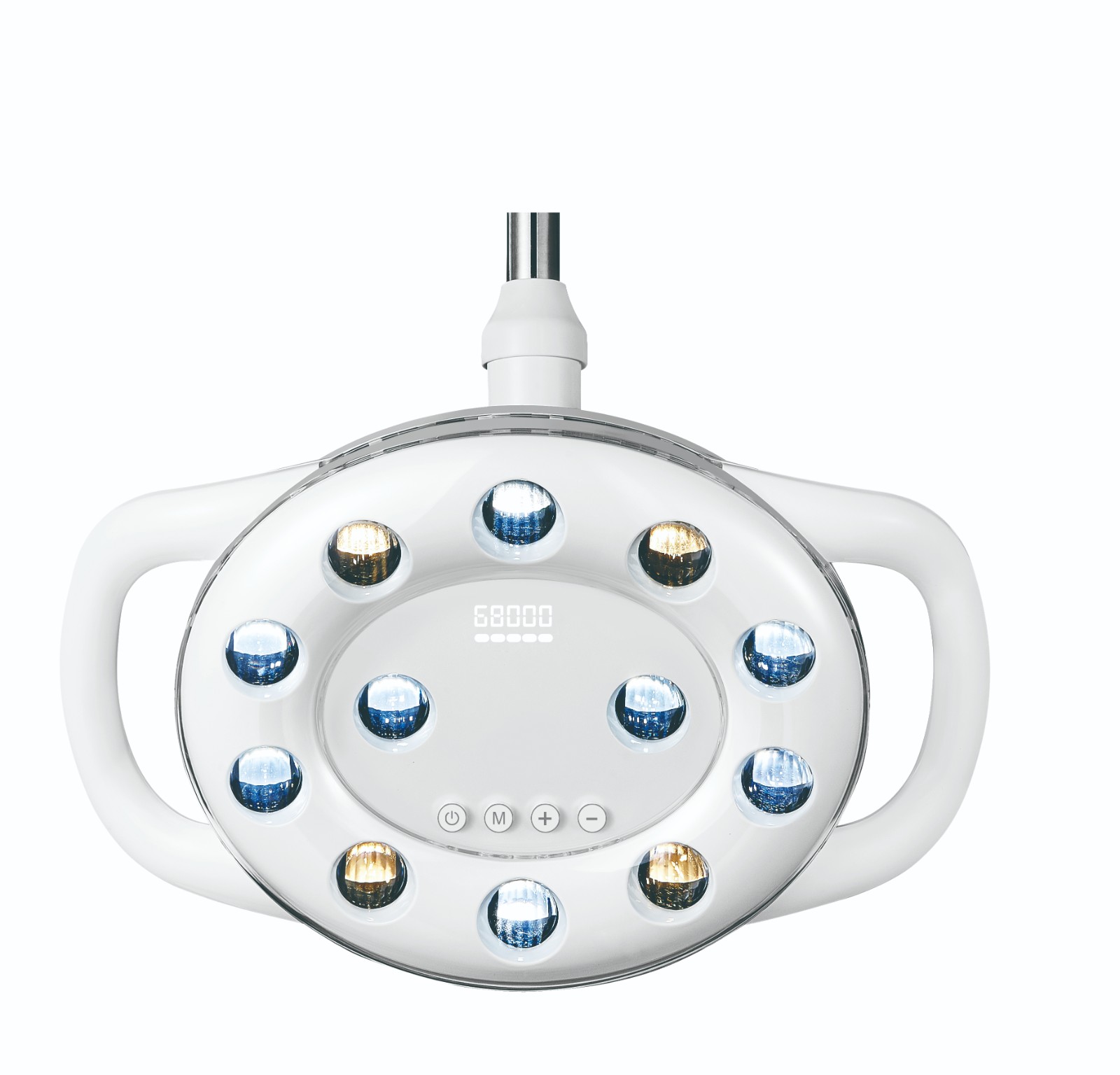

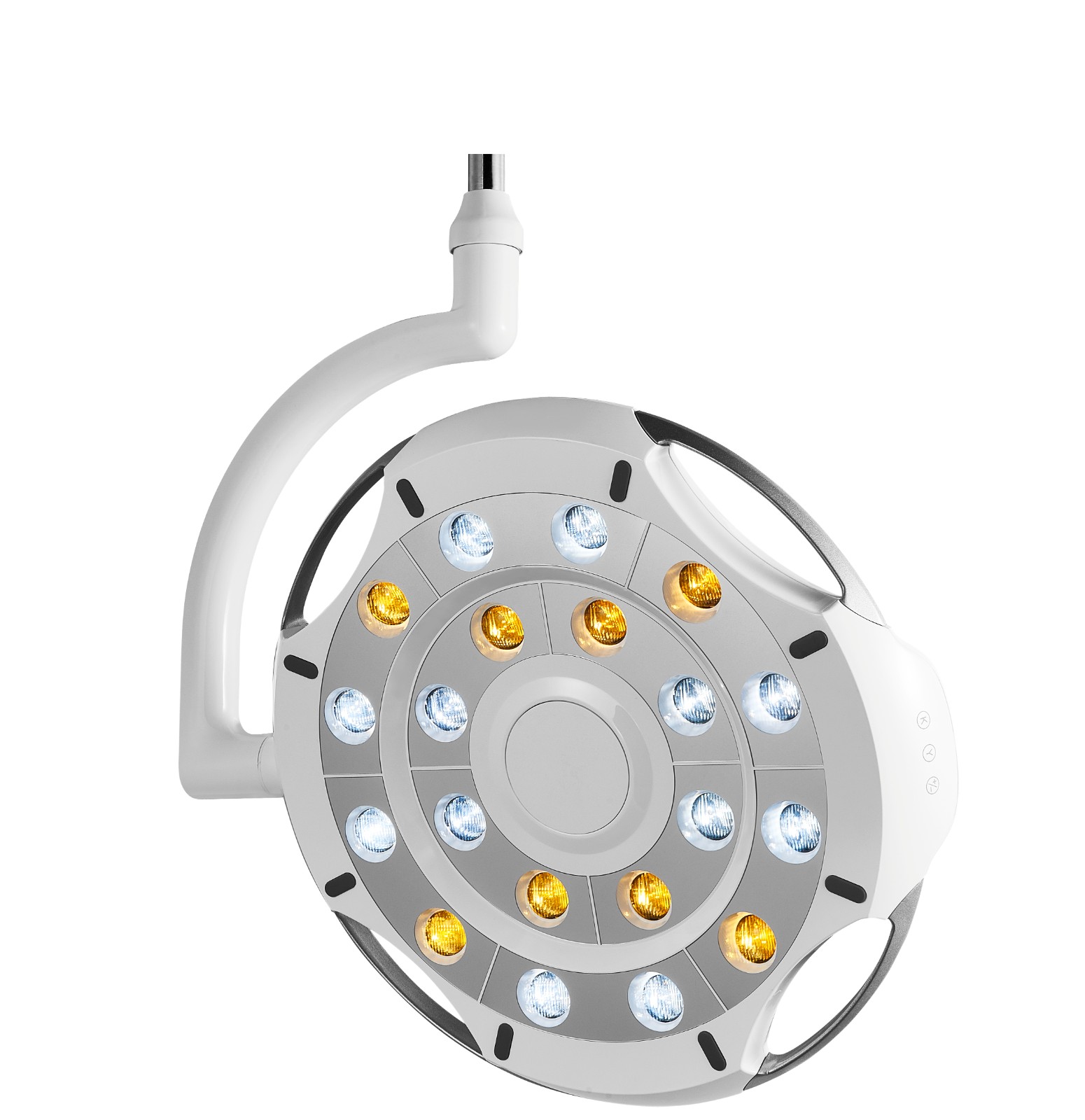

Oral Lamp The oral lamp is equipped with a dual-color twelve-hole small/twenty-hole panoramic LED shadowless lamp, which can be used for both surgical and general treatments. The manual and induction bidirectional control function is equipped with digital display and touch key functions. It features freely adjustable light source and anti-curing function. The illuminance range is 8000Lux- 8000Lux /13000Lux- 12000Lux, and the color temperature range is 3300K-5700K/4500K-8000K.

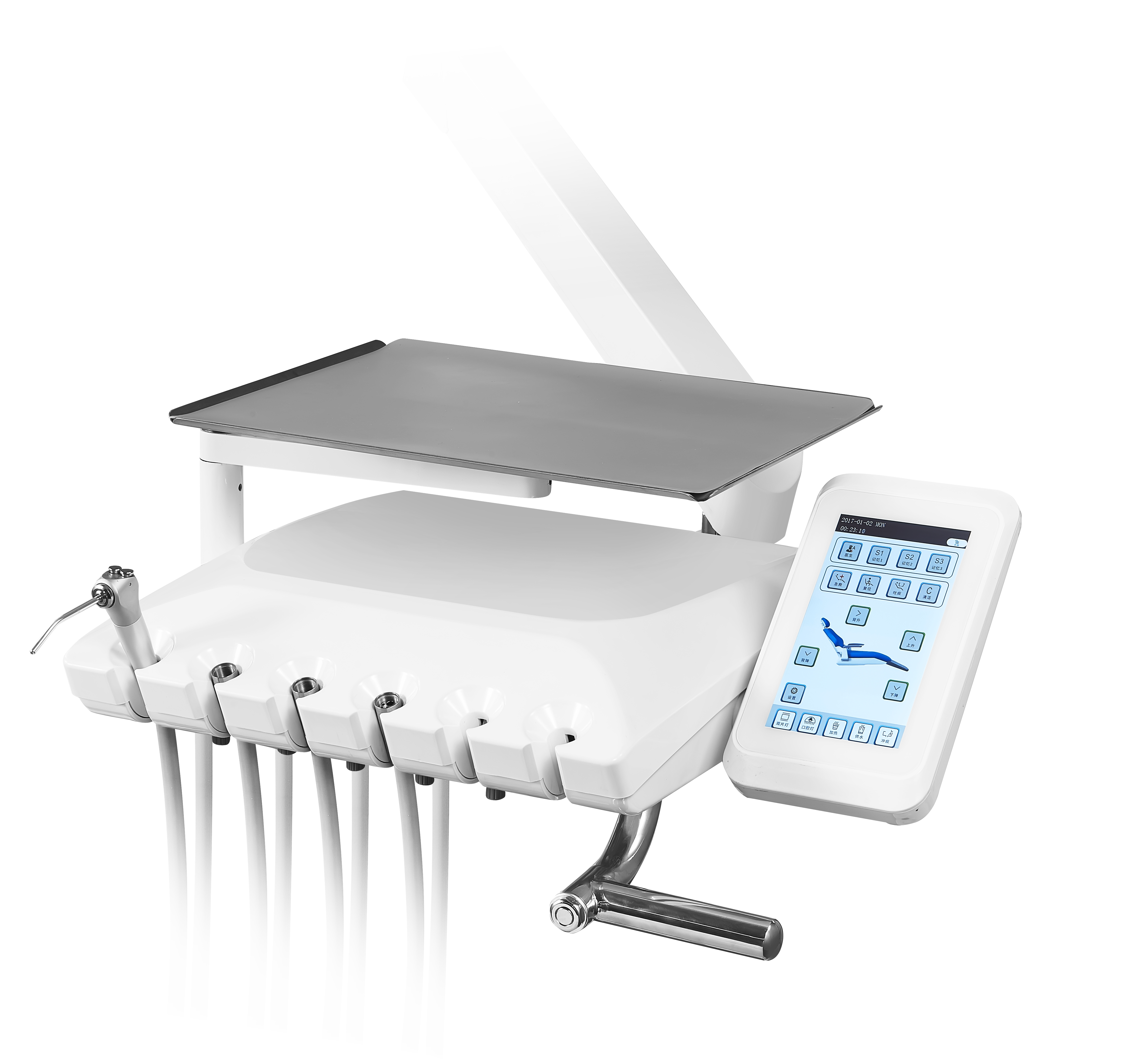

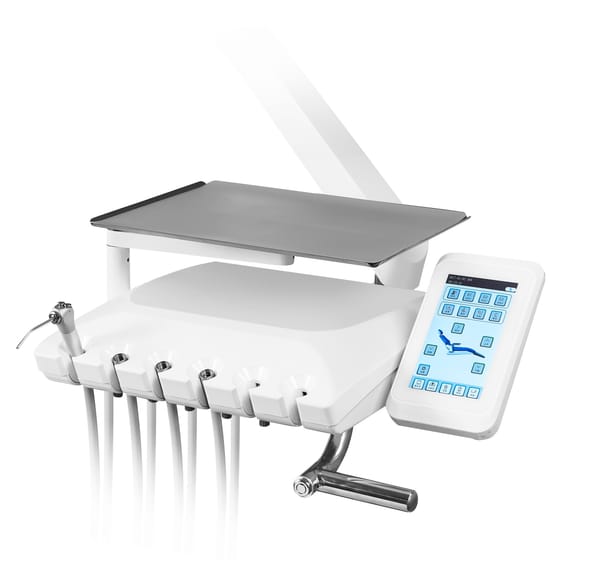

Main Control Console The main control console adopts an top-mounted instrument tray with a stainless steel tray, an aluminum bracket (the tray can rotate 180°), and a high-temperature sterilized silicone pad. It is designed with a 7-inch touch LCD screen control system specifically for medical use and a stainless steel handle bracket. The pipeline layout is neat and beautiful.

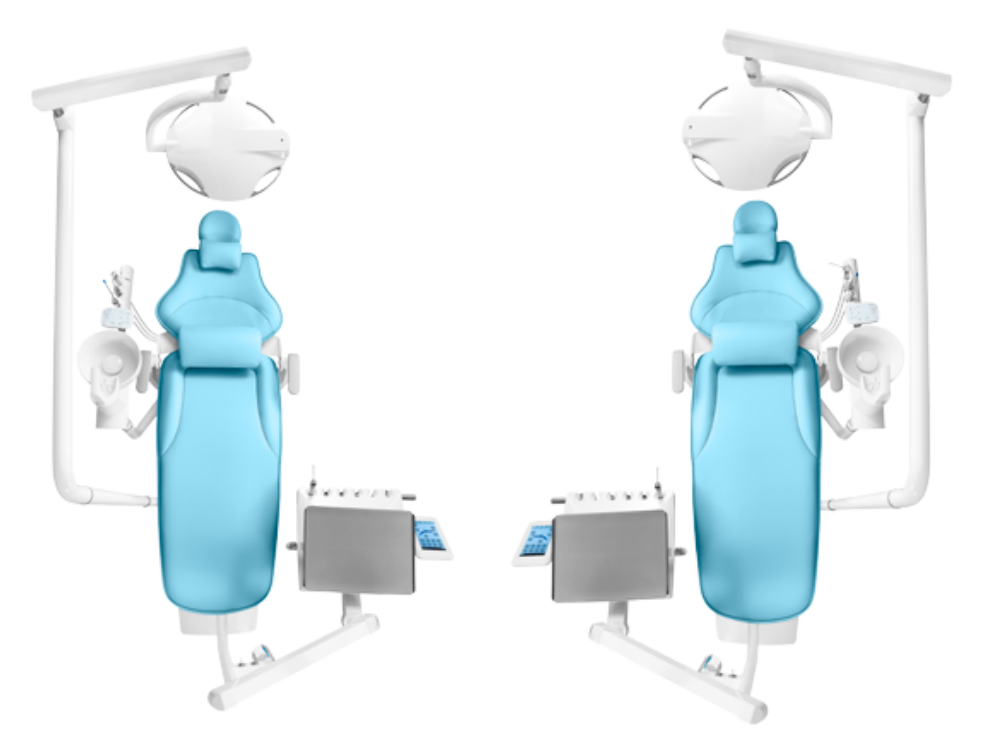

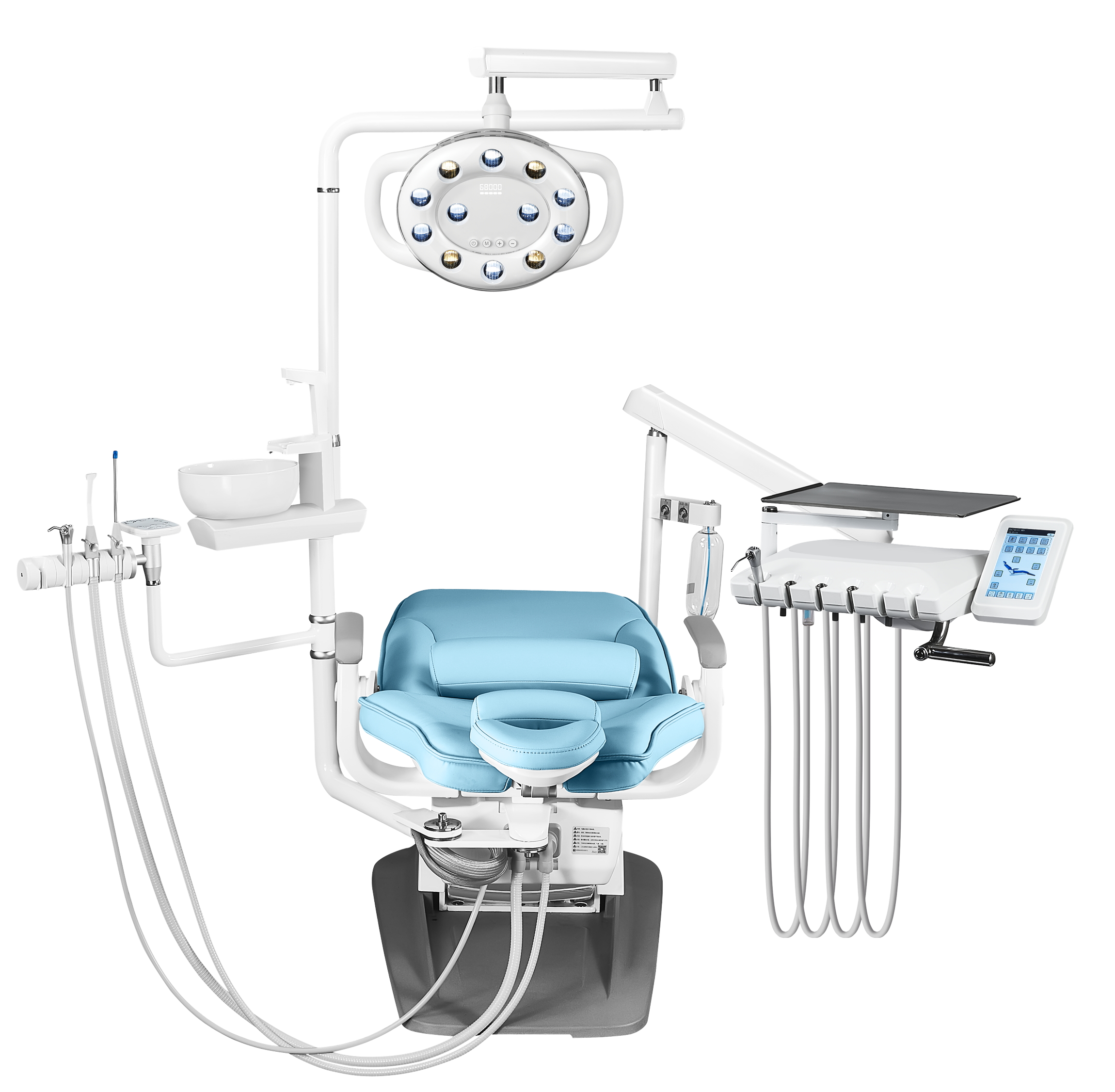

Left and Right Interchangeable Operation Architecture The dental chair supports left and right-hand interchangeable operation, fully considering the operating habits of different dentists, making the treatment process smoother.

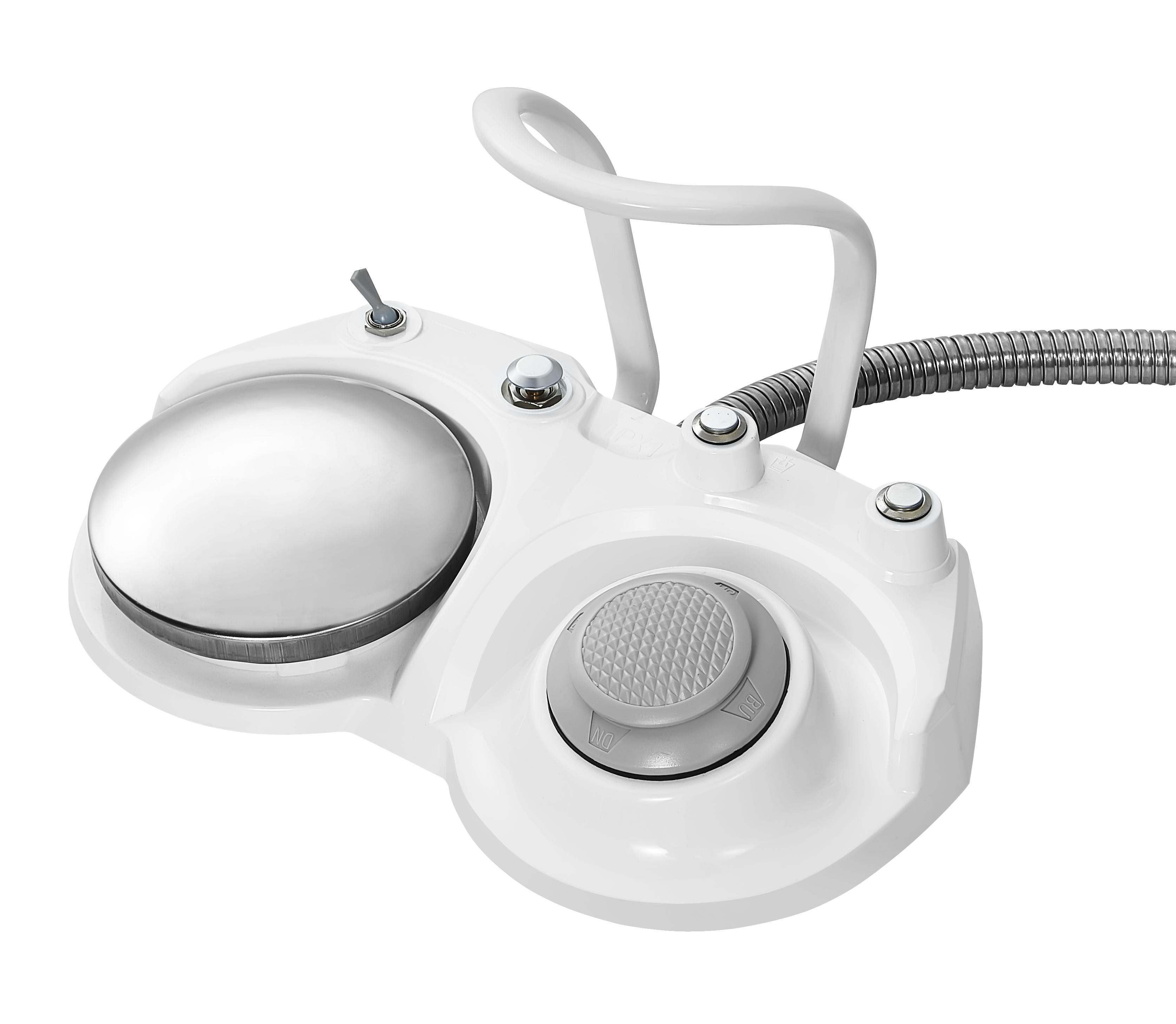

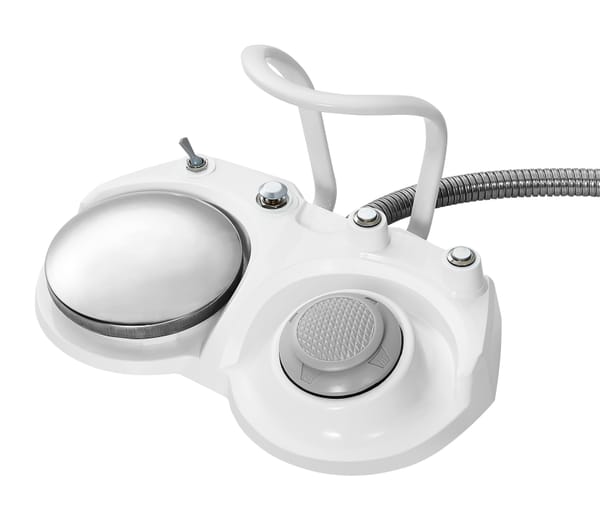

Luxury Six-in-One Footpedal The six-in-one multi-functional operation foot pedal adopts a stainless steel tread design, which can control water and air operation, as well as flushing the spittoon, water supply and the lifting and tilting of the chair. It is also equipped with a stainless steel outer tube for the foot pedal, which is not only wear-resistant but also anti-stepping.

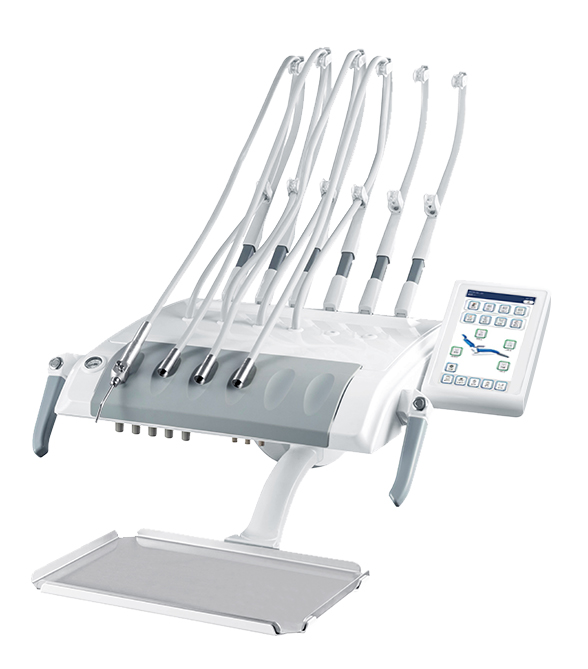

Up Mounted Instrument Tray (Optional accessory) The Up mounted instrument tray is equipped with 6 pull rods (suitable for high and low-speed mobile phones, dental cleaners, electric motors, and fiber-optic mobile phones), and each pull rod can independently control the fixed position. The bottom-mounted rotating tray is practical and convenient.

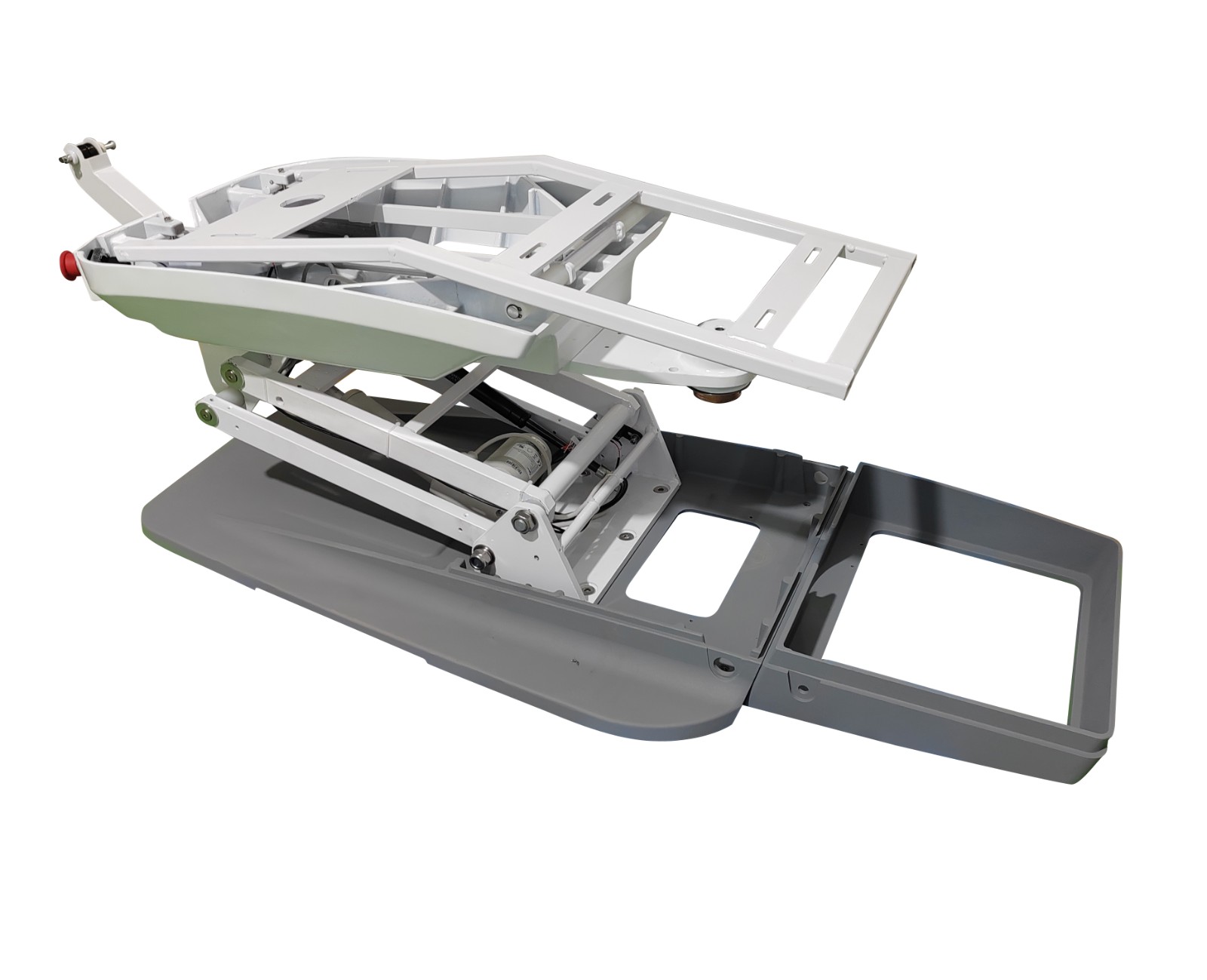

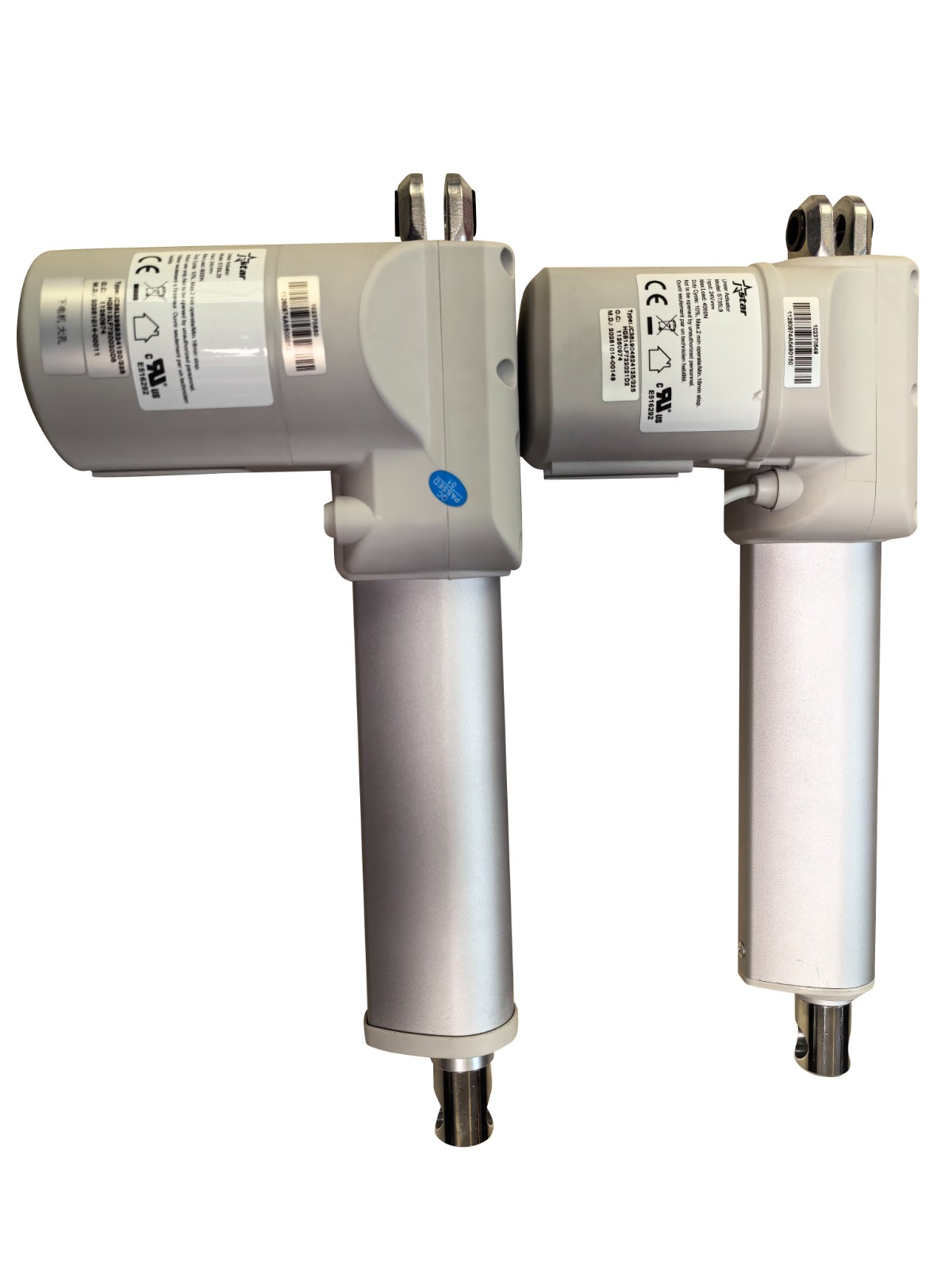

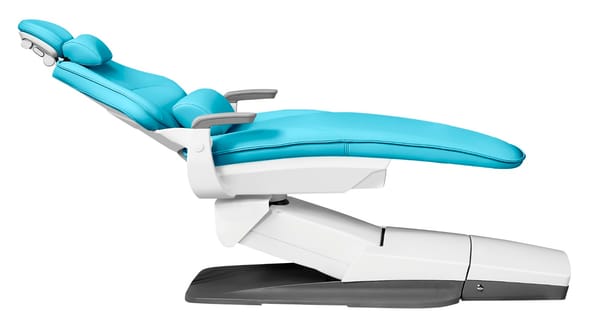

Chair Structure The chair structure adopts a 12MM wide base plate as the support seat, and the net weight of the chair part reaches 115 kilograms, which reduces the degree of shaking during the product's use. In addition, the product also adopts the American J-star brand motor. The lifting motor uses a thrust of 8000 Newtons, and the pitch motor uses a fast thrust of 4000 Newtons. All motors are equipped with pressure-bearing self-locking functions, making the use safer and more reassuring.

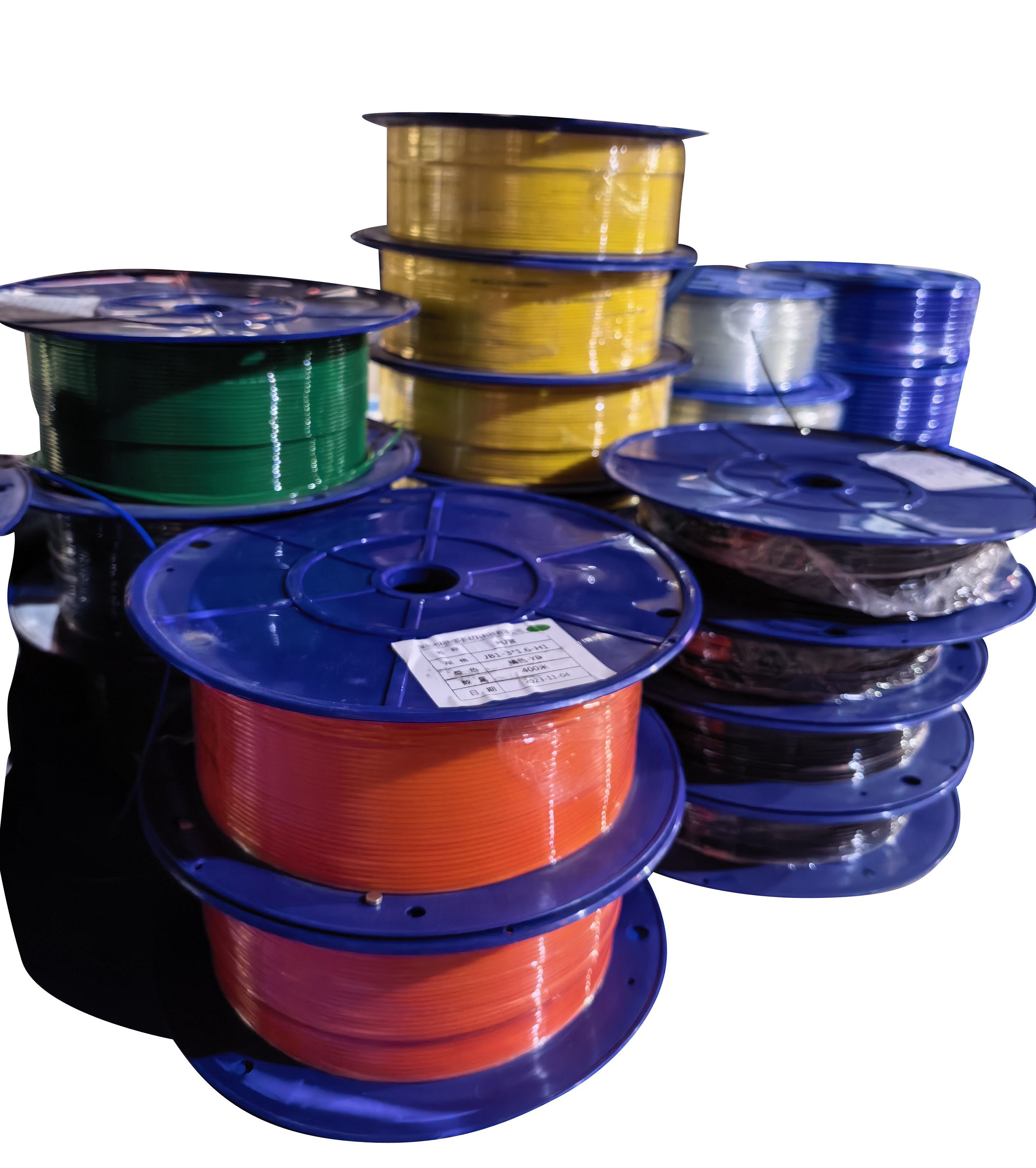

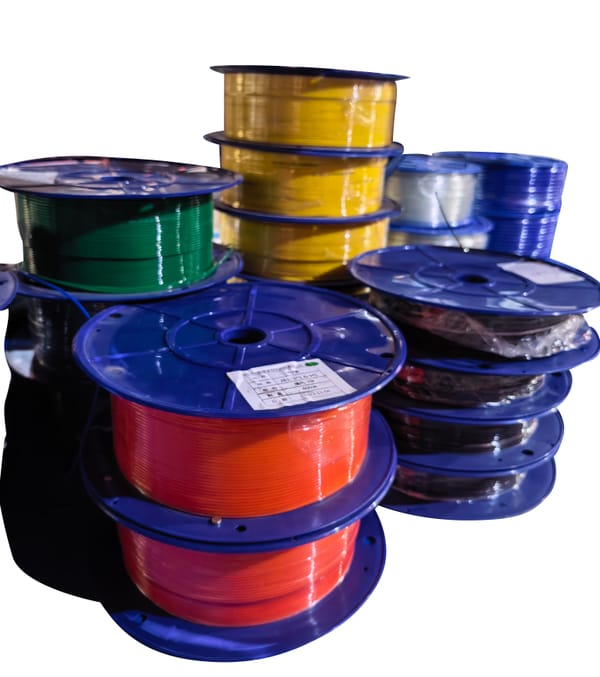

German Imported Water Pipe The water and gas pipelines of the entire machine are made of raw materials from BASF in Germany, which are more pressure-resistant and anti-aging, and have a service life of 5 to 10 years.
