XO FLEX
XO CARE A_S · #CF-200

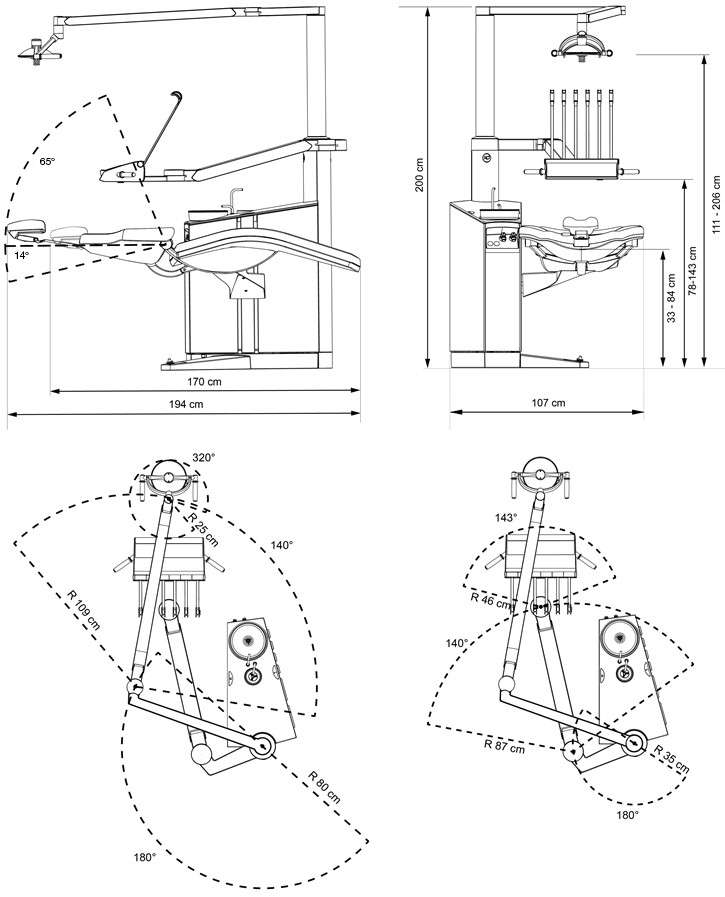

A dental treatment unit with a compact floor-mounted unit stand with lifting mechanism for XO Patient chair (side lift), cuspidor, and a single-column pivoting articulated balanced arms for instrument bridge, operating light and display. The unit is designed with over-the-patient delivery of unit instruments for working primarily on supine patients in order to obtain healthy working conditions and efficient workflow. The user interface is yielding maximum focus on the oral cavity and optimal infection control.
Product Information
| Manufacturer | XO CARE A_S |
|---|---|
| Display | 8-digit text field with LEDs |
| Details Color | Black grey (RAL 7021) |
| Air Filtration | 5 μm |
| Spray Air Range | 0 – 100% of maximum |
| Unit Base Color | XO Silver (IGP 6802/gloss 20) |
| Service Interval | 12 months preventive checkup |
| Software Version | 4.02 (released 2017-03-02) |
| Unit Instruments | Up to 6 detachable instruments |
| Water Filtration | 50 μm |
| Spray Water Range | 10 – 70 ml/min ± 20% |
| Unit Column Color | XO Silver (IGP 6802/gloss 20) or Traffic white (RAL 9016/gloss 20) |
| Minimum Room Width | 200 cm (recommended 220 cm) |
| Operating Humidity | 20% – 95% |
| Transport Humidity | 10% – 95% |
| Backflow Prevention | 20 mm vertical air gap |
| Minimum Room Length | 300 cm (recommended 320 cm) |
| Unit Stand Material | Steel and aluminum |
| Water Tank Capacity | Approximately 1 liter |
| Operating Temperature | +15°C – +35°C |
| Transport Temperature | -40°C – +70°C |
| Micromotor Speed Range | 100 – 40,000 RPM ± 20% |
| Minimum Ceiling Height | > 230 cm (recommended 255 cm) |
| Operating Air Pressure | 700 hPa – 1060 hPa |
| Micromotor Speed Levels | 3 levels maximum |
| Scaler Irrigation Water Range | 10 – 90 ml/min ± 20% |
| Stand/arms/light/bridge Color | Traffic white (RAL 9016/gloss 20) |
