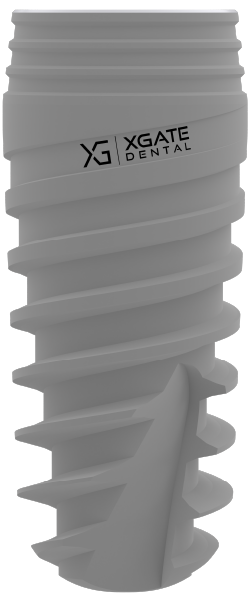

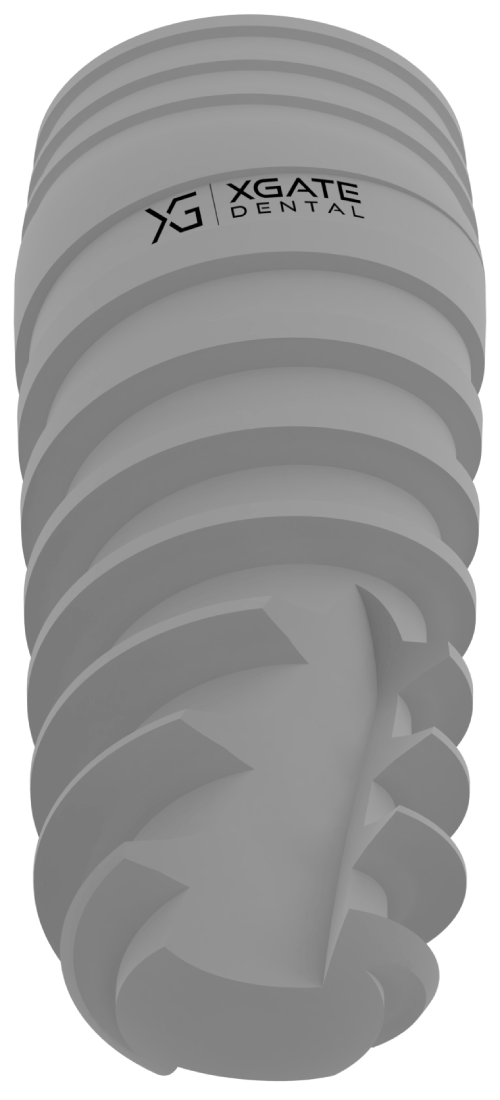

X3 Pure&Porous Dental Implant System

Design

The truest measure of success is the final result, which in our case, are natural-looking prosthetics. To achieve this, we've designed the X3 implants in a narrowing fashion, from top to bottom, and included an inbuilt platform switch.

Back-tapered coronal design (alternatives) • Narrowing cylinder design • Conical design, cone-shaped • Funnel-shaped

XGate Dental's cone-like implant compresses the bone in a gradual fashion, while the special drilling blades at the bottom enable smooth and minimal osteotomy incisions. These features allow achieving high primary stability in difficult situations when there is soft bone or existing sockets from previous extractions. XGate Dental's implants allow for immediate implant placement and enable functionality soon after the procedure.

Advantages Of The "Tiger Claw" Geometric Form

• Great initial and continual implant stability • Easy insertion and optimal cutting efficiency (due to the sharp thread shape) • Increased surface area (due to the round-faced design) • Excellent Primary stability • Extraordinary bone-to-implant contact • High resistance to compressive forces • Minimized shear force during implantation • Supports angiogenesis & sustains blood supply

XGate's built-in platform switching system within the implant keeps it away from the bone, thereby minimizing bone resorption. Furthermore, it enables the crucial growth of the soft tissue.

Platform Switching

The present study confirms that the platform-switching concept can minimize marginal bone loss over a 1-year period, in agreement with a previous trial and recent meta-analysis. Specifically, average marginal bone loss around non–platform-switched implants (0.78 mm mesially and 0.90 mm distally) was more than twice the average marginal bone loss around platform-switched implants (0.30 mm mesially and 0.38 mm distally)

Two Spiral Channel & a domed apex (head/top)

XGate's implant is composed of a domed apex that provides high tolerance, and two cutting blades at the bottom that provide self-screwing properties. This enables a simpler, quicker, and, more importantly, safer procedure.

Dual thread

XGate's dual thread design doubles the implant's insertion rate (2.0mm), facilitating a simpler and faster implant placement. Additionally, the self-screwing and low bone compression properties improve primary stability.
