S W1 Watercooling for Schick milling spindle
Schick GmbH · #2990

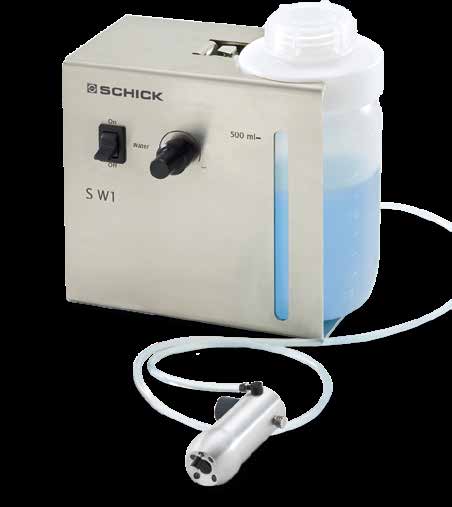

Watercooling system for milling spindle. Ideal alternative solution to wet milling with a turbine for machining all-ceramic primary parts. Water feed controlled by rotary knob. Motor milling spindle achieves absolutely precise results, especially in zero-degree milling. Compatible with S1 Basic, S2 Profi, S3 Master and S3 Premium. Scope of delivery: S W1 Station, water tank, S W1 light head with hose connection, reducer for chuck 3 mm to 1.6 mm, reducer for chuck 2.35 mm to 1.6 mm.
Product Information
| Manufacturer | Schick GmbH |
|---|---|
| Tank | 0.5 l |
| Voltage | 100-240 V |
| Frequency | 50/60 Hz |
| Dimensions | 170 x 170 x 85 mm (BxHxT) |
| Weight Empty | 1.4 kg |
| Pump Capacity | max. 60 ml/min |
| Tank Capacity | max. 0.5 l |
| Dimensions Wxhxd | 170 x 170 x 85 mm |
| Pumping Capacity | 60 ml/min |
| Weight Empty Max | 1.4 kg |
| Operating Voltage | 100-240 V |
| Operating Frequency | 50/60 Hz |
