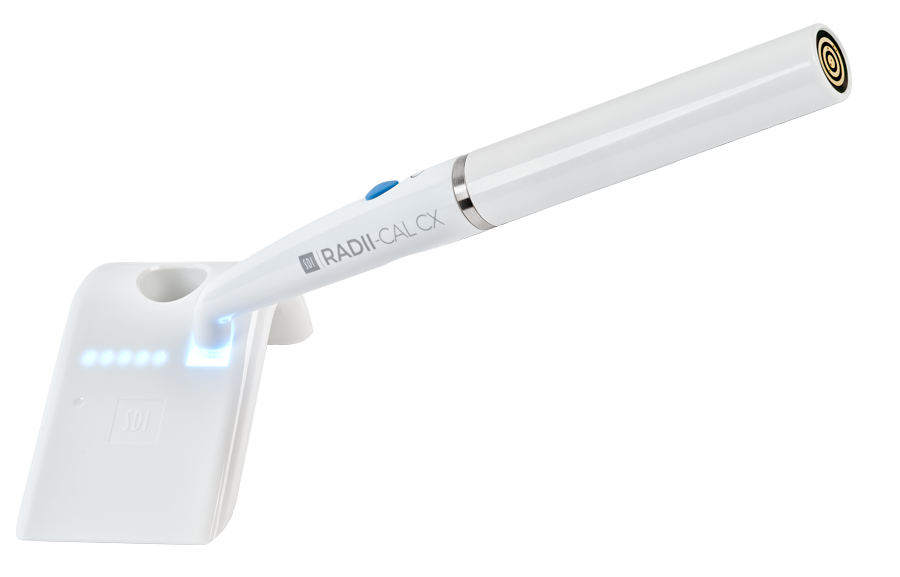

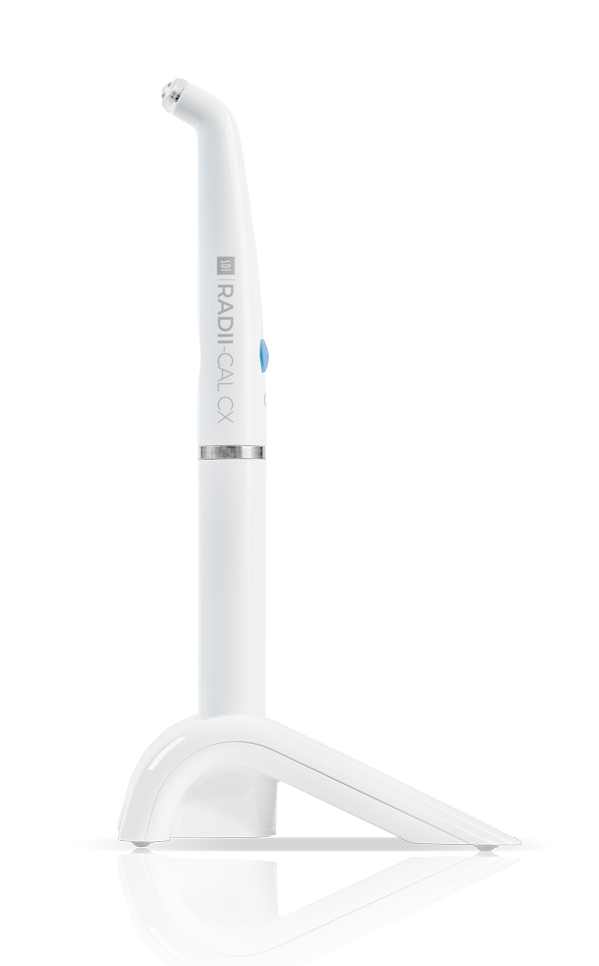

Radii-Cal CX - Collimated LED Curing Light
SDI Limited · #5600110

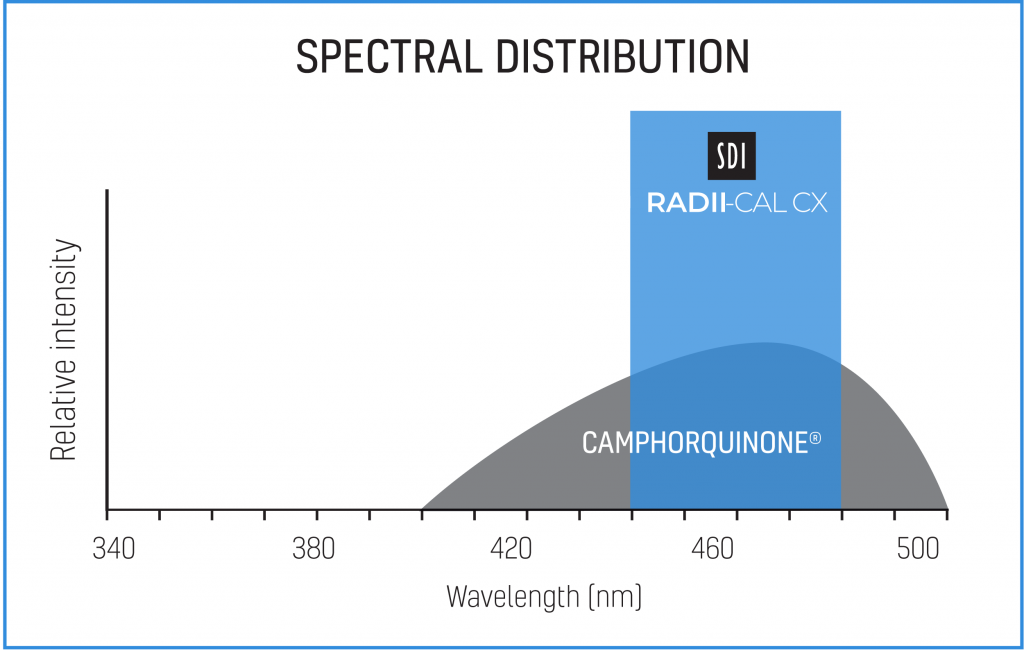

Collimated LED curing light designed for deeper, more reliable cure with uniform curing energy across all depths. Features advanced heat management with heat sink dissipation technology, lightweight ergonomic design (144g), smart battery system with docking charger, sensitivity protection ramp for soft-start polymerization, built-in radiometer, and optimal 440-480nm wavelength spectrum to maximize camphorquinone monomer activation. Provides 1,200 x 10 second cures per full charge with continuous run time of 3 hours 20 minutes. Includes 2-year warranty.
Product Information
| Manufacturer | SDI Limited |
|---|---|
| Weight | 144 g / 5.1 ounces |
| Battery Type | Li-ion 7.4V/14 wh |
| Charger Time | 60 – 180 minutes |
| Charger Weight | 84 g / 3 ounces |
| Light Intensity | 1200 mW/cm2 (peak) |
| Peak Wavelength | 460 nm |
| Plug Pack Input | 100-240V ~ 0.8A, 50/60 Hz |
| Cures Per Charge | 1,200 x 10 second cures |
| Handpiece Length | 243 mm |
| Plug Pack Output | 12V 1.66A, 20.0W MAX |
| Wavelength Range | 440 nm – 480 nm |
| Charger Dimensions | 70 mm (W) x 40 mm (H) x 130 mm (L) |
| Handpiece Diameter | 22 mm |
| Operating temperature | 10°C – 40°C |
| Ramp To Full Intensity | 5 seconds |
| Duration Continuous Use | 20 seconds |
| Total Continuous Runtime | 3 hours, 20 minutes |
| Charger Height With Handpiece | 255 mm |
