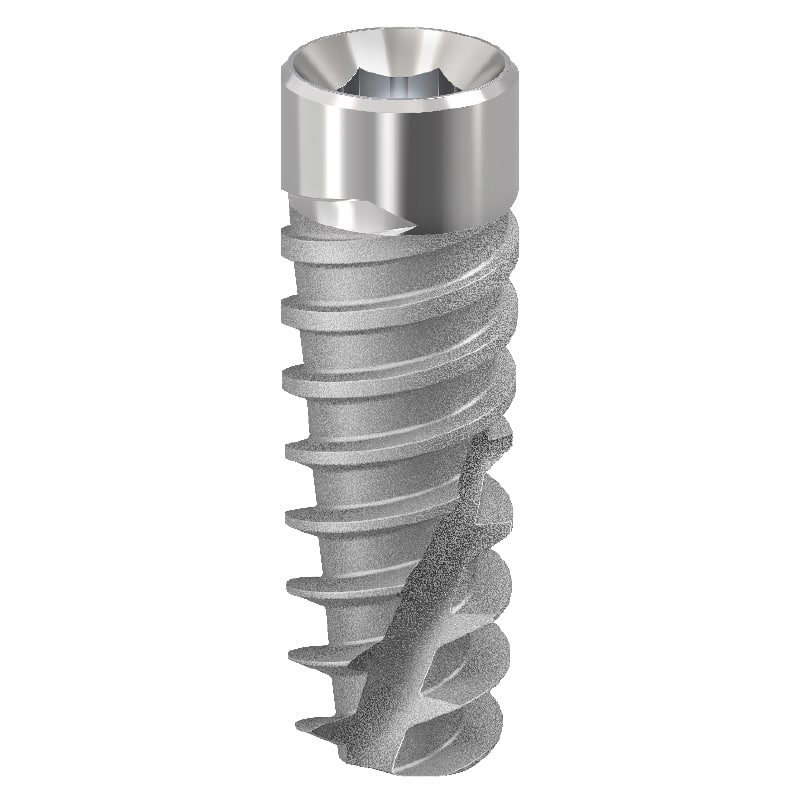

PteryFit™ Implant
Noris Medical GmbH · #NM-S5023
A solution for atrophic maxilla by achieving anchorage in the medial pterygoid plate. Self tapping implant with high primary stability designed for the pterygomaxillary region of the atrophic maxilla.
Product Information
| Manufacturer | Noris Medical GmbH |
|---|---|
| Design | Cylindrical body with apical taper |
| Surface | Machined surface coronal portion |
| Diameter | 3.75mm |
| Included | Cover Screw |
| Bone Type | Type I and Type II |
| Bone Level | Bone Level Implant |
| Bone Types | Pterygoid Region |
| Suitability | Immediate loading, Suitable for extraction sites |
| Key features | Self-tapping, High primary stability, Minimal drilling, Fast insertion |
| Length Range | 18-25mm |
| Tissue Level | Tissue Level Implant |
| Neck Textures | Machined surface, RBM surface |
| Thread Design | Condensing variable threads |
| Compatible with | All Classic & Challenge Series implants |
| Design Features | Large cutting surface area, Tapered thread and tapered core body, Wide and sharp threads, Smooth machine surface basket neck |
| Special features | Double thread with a large step, Double flutes, 5 mm machined surface neck |
| Clinical Benefits | For pterygomaxillary region, Self tapping, High primary stability, Fast insertion, Reduces adherence of perio-pathogens |
| Prosthetic Platform | Internal hex |
| Prosthetics Platform | Internal hex |
| Thread Characteristics | Apically tapered threads and tapered core body |
| Bone Type Compatibility | All bone types |
