FUSION5 Dental Curing Light
DentLight Inc. · #7800080

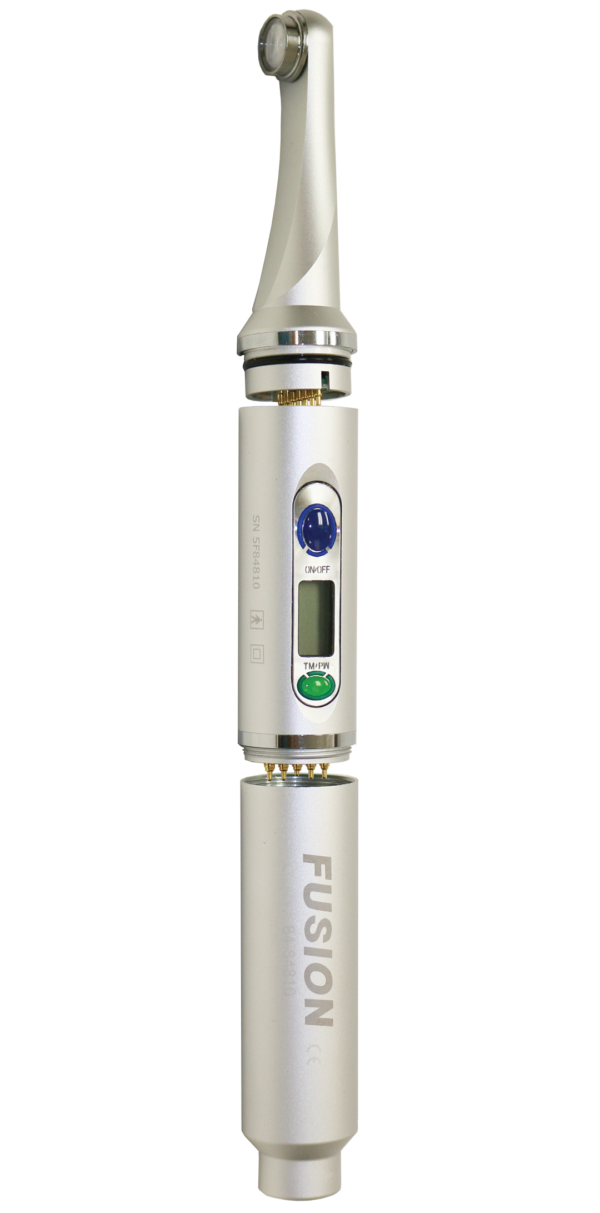

FUSION 5 is the heavy-duty light that clinicians can count on to save curing time, improve quality and cover all composite restoration applications including fillings, sealants, veneers, crowns and adhesives for brackets. It features ultrafast 3 second deep cures, 4000 mW/cm2 uniform intensity across 10mm curing tip with unique patented optics delivering a laser-like curing beam. The unit includes ergonomic design with sapphire lens, low profile tip with 90° angle, solid aircraft aluminum construction, 360° swivel head, and LCD interface. FUSION 5 Kit includes: FUSION 5 handpiece, Charging Stand, 1-tacking tip, 1-9mm curing cap, 1-13mm curing cap, Power Adapter, Light Shield, Barrier Sleeves (100), Stand Stick Pad, Instructions for Use, and 2-year warranty (1 year Battery Assembly/Charging Stand warranty).
Product Information
| Manufacturer | DentLight Inc. |
|---|---|
| Swivel | 360 degree |
| Weight | 3.9 oz |
| Warranty | 2 years (1 year Battery Assembly/Charging Stand) |
| Tip Angle | 90° |
| Curing Time | 3 seconds |
| Swivel Head | 360° |
| Construction | Aircraft aluminum |
| Kit Contents | FUSION 5 handpiece, Charging Stand, 1-tacking tip, 1-9mm curing cap, 1-13mm curing cap, Power Adapter, Light Shield, Barrier Sleeves (100), Stand Stick Pad, Instructions for Use |
| Tip Diameter | 10 mm |
| Tip Material | Sapphire lens |
| Recharge Time | 90 minutes |
| Add On Options | Early oral cancer screening, Fluorescent caries detection, Transillumination, Photobiomodulation |
| Low Power Mode | 2000 mW/cm2 |
| User Interface | LCD/Metal Keypad |
| High Power Mode | 4000 mW/cm2 |
| Light Intensity | 4000 mW/cm2 (Plasma), 2000 mW/cm2 (Pulse), Focused |
| Peak Wavelength | 440-480 nm |
| Battery Run Time | 120+ minutes |
| Handpiece Length | 200 mm |
| Light Head Sizes | 3mm, 9mm, 10mm, 13mm |
| Intensity At 10mm | 2300 mW/cm2 |
| Handpiece Diameter | 21 mm |
| Timer Options Pulse | 3, 5, 10, 20, 60 seconds |
| Wavelength Spectrum | 420-490nm |
| Timer Options Plasma | 3 seconds |
| Construction Material | Solid aircraft aluminum |
