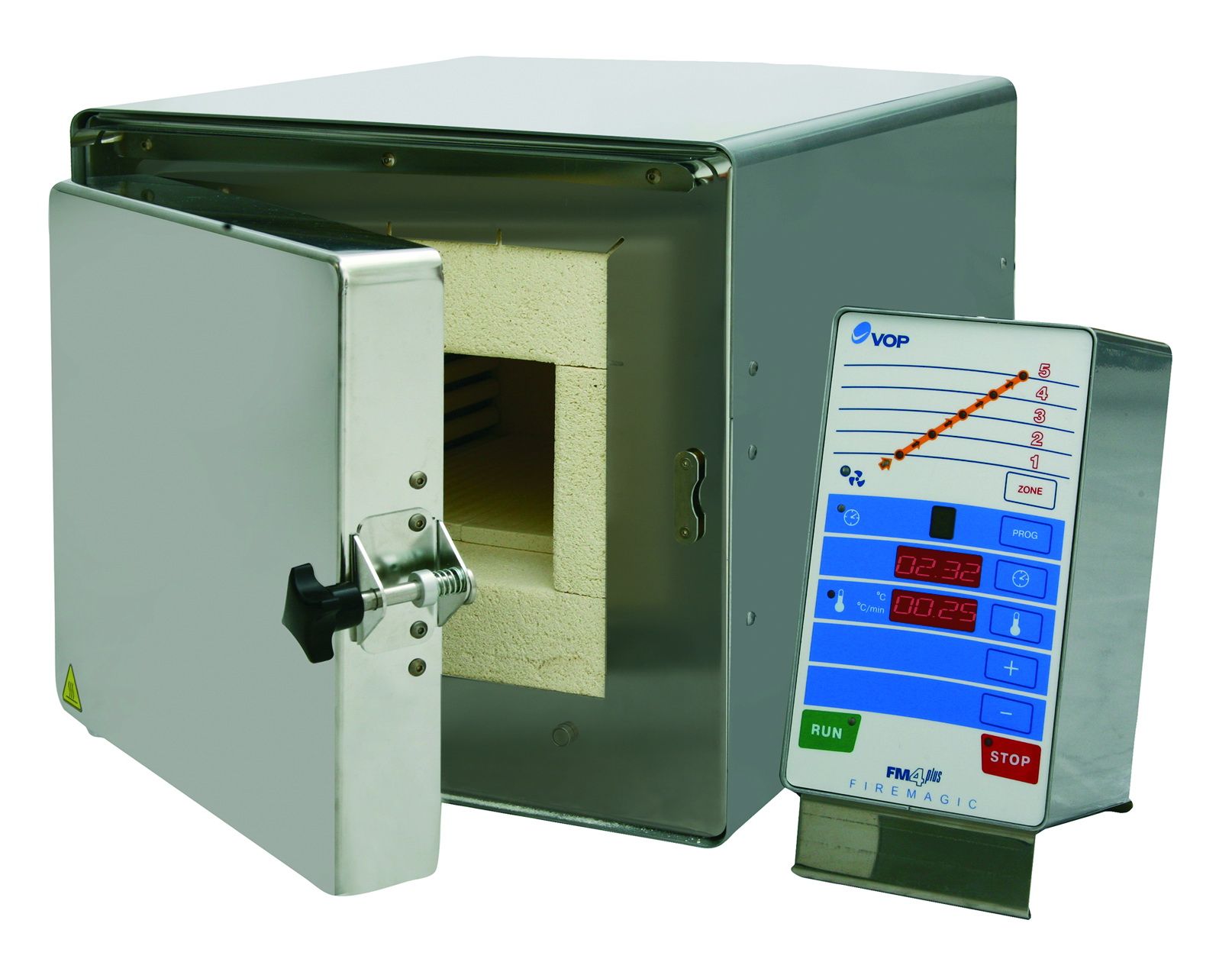

Firemagic ET400
VOP Ltd. · #ET400 · source
Preheating oven for casting rings and wax evaporation
Features
- 10 +1 user programs
- 5 temperature zones
- automatic parameter control
- postponed start up to 90 h
- automatic control of steam extractor
- working with shock investment
Accessories
- steam extractor Ref. № 058000000
- ceramic trays set Ref. № 054000013
Technical Data
Power supply: 230V±10%, 50Hz
Power consumption: 2000 W
Maximum firing temperature: 1100 C
Maximum program duration: 100 h
Temperature speed of increase between the zones: from 1⁰ C/min to 10⁰ C/min
Firing chamber dimensions W/D/H: 180/100/170 mm
Dimensions (without control block) W/D/H: 360x400x360 mm
Weight: 28 kg
Product Information
| Manufacturer | VOP Ltd. |
|---|---|
| Weight | 28 kg |
| Power supply | 230V±10%, 50Hz |
| User Programs | 10 +1 |
| Power Consumption | 2000 W |
| Temperature Zones | 5 |
| Oven Dimensions (w/d/h) | 360x400x360 mm |
| Maximum Program Duration | 100 h |
| Maximum Firing Temperature | 1100 C |
| Temperature Speed Of Increase | from 1⁰ C/min to 10⁰ C/min |
| Firing Chamber Dimensions (w/d/h) | 180/100/170 mm |
