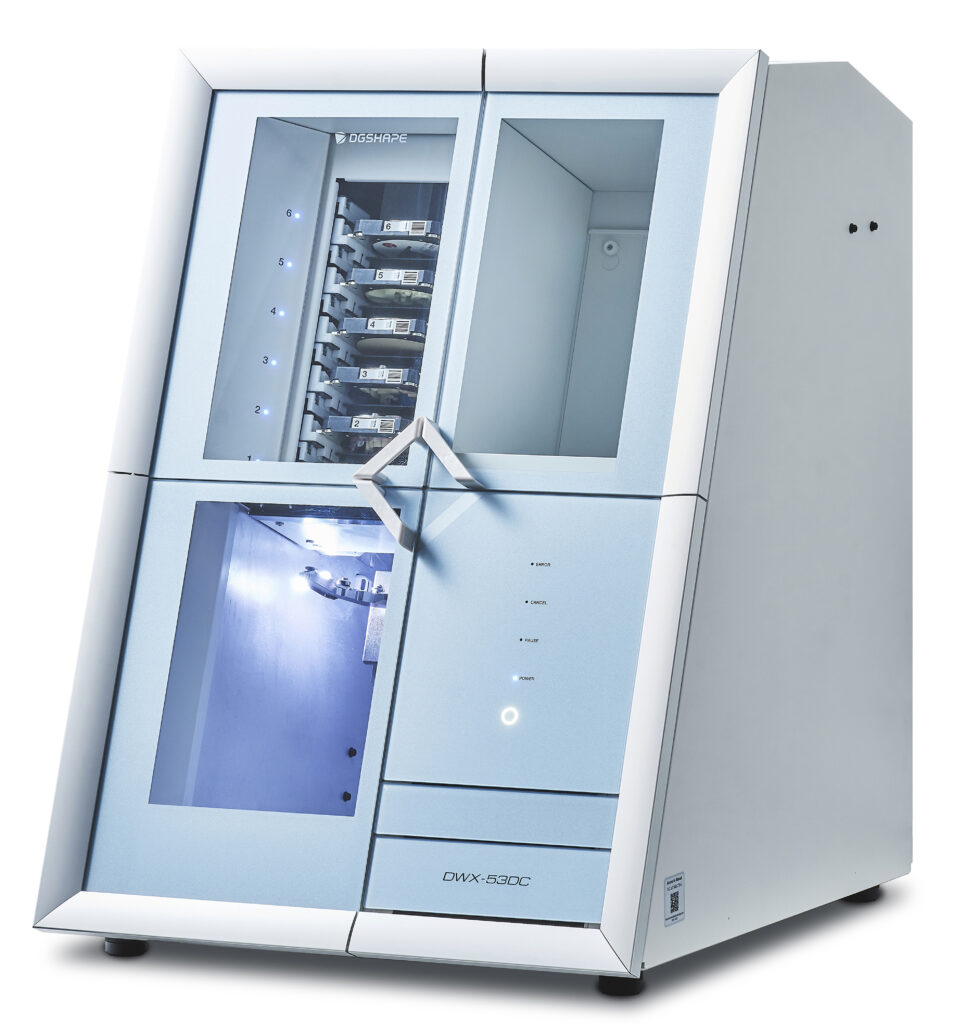

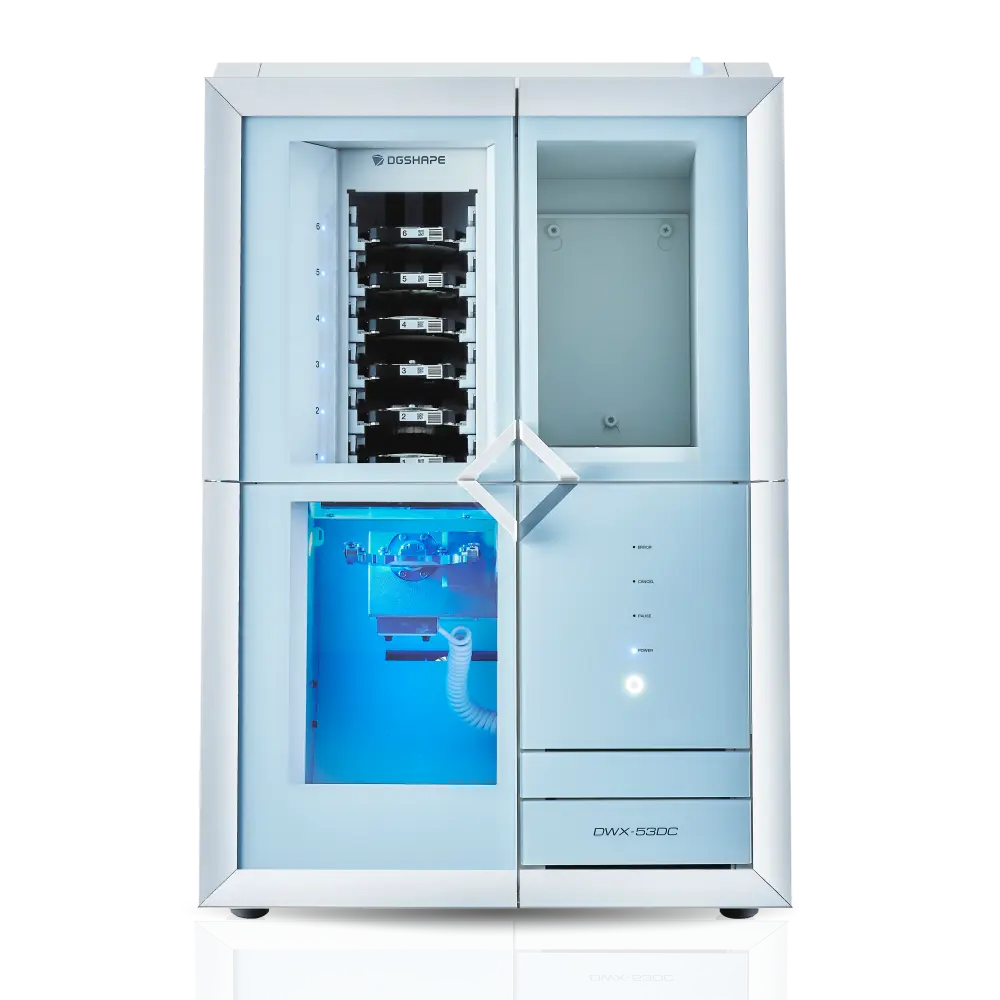

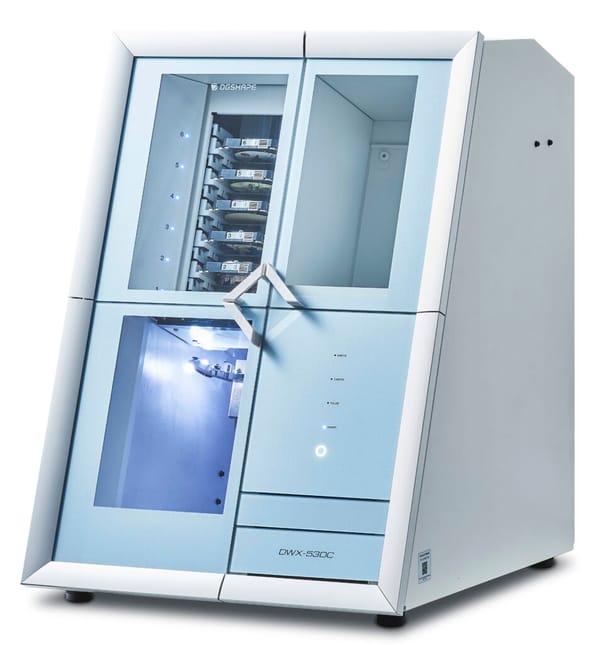

DWX-53DC 5-Axis Dental Milling Machine
DGSHAPE A Roland Company · #DWX-53DC
A smart 5-axis dry dental milling machine with an automatic disc changer and 15-station automatic tool changer. Designed for precision dental restoration manufacturing, featuring an open CAD/CAM system and advanced automation technologies.
Product Information
| Manufacturer | DGSHAPE A Roland Company |
|---|---|
| Axis | 5-axis |
| Weight | 120 kg (265 lbs.) |
| Interface | USB |
| Materials | Zirconium dioxide, Wax, PMMA, Composite resin, PEEK, PEKK, Plaster, Glass fiber reinforced resin, CoCr sinter metal, Polycarbonate |
| Dimensions | 598 mm (25.6 in.) x 763 mm (30.1 in.) x 831 mm (33.0 in.) |
| Tool Length | 40 to 55 mm (1.57 to 2.17 in.) |
| Disc Changer | 6-slot automatic |
| Tool Changer | 15-station automatic |
| Spindle Speed | 6,000 to 30,000 rpm |
| Tool Capacity | Up to 15 milling burs |
| Operating Speed | XY~3,000 mm/min, Z:~2,700 mm/min |
| Power Consumption | approx. 250 W |
| Millable Materials | Zirconia, Wax, PMMA, Composite resin, PEEK, PEKK, Gypsum, Glass fiber reinforced resin, CoCr sinter metal, Polycarbonate |
| Power Requirements | 100-240 VAC ± 10% 50/60Hz, 2.8 A |
| Rotary Axis Travel | A: ± 360°, B: ± 35° |
| Tool Shank Diameter | 4 mm (0.16 in.) |
| Millable Applications | Inlay, Onlay, Overlay, Crown, Bridge, Veneer, Toronto Bridge, Copings, Implant Bar, Occlusal Splint and Bites, Surgical Guide, Removable Dental Prostheses |
