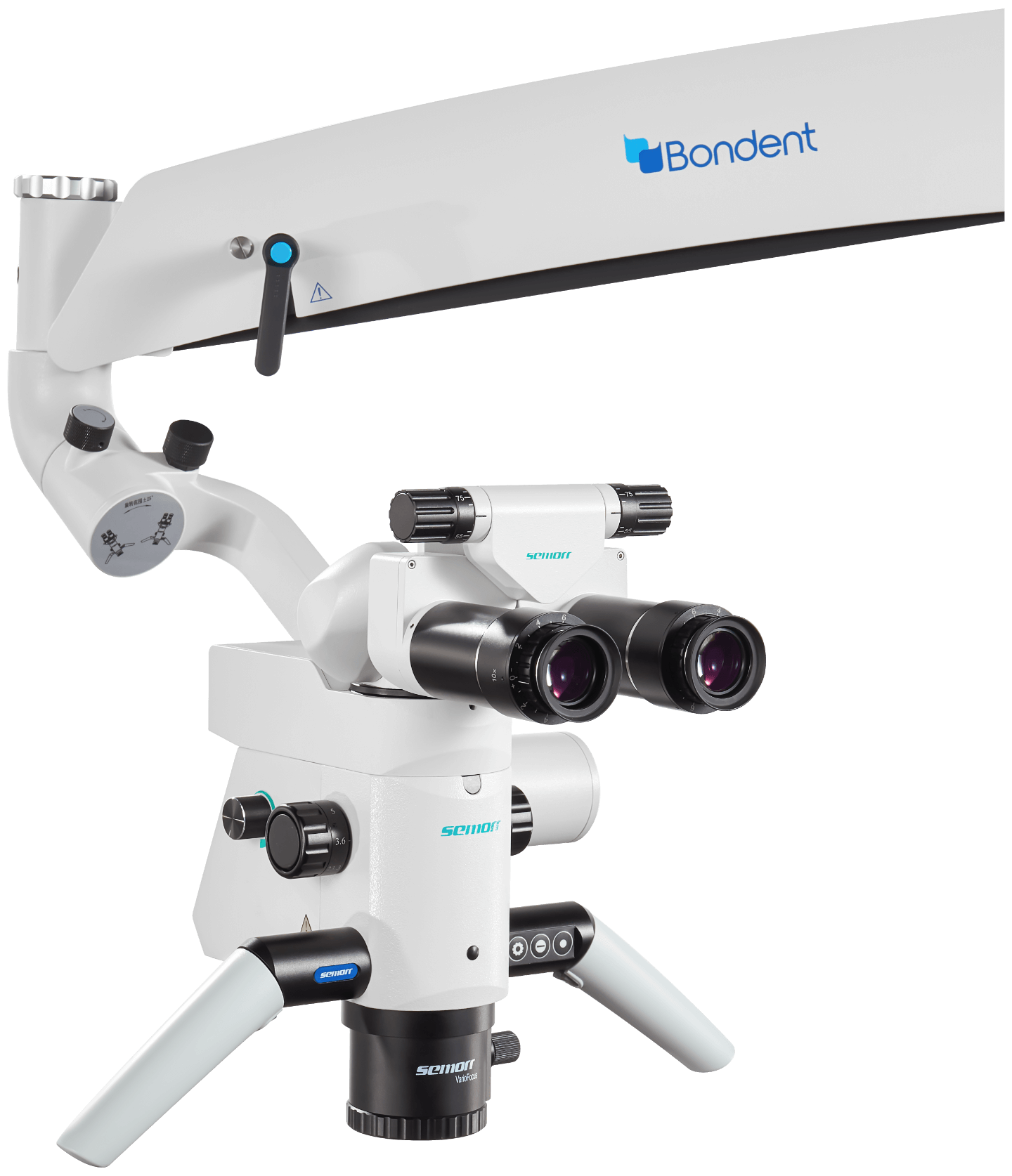

DOM 3000 D MICROSCOPE

Surgical Microscope

Intelligent anti-artifact technology provides a clearer and accurate digitization and decreases chances of misdiagnosis

Core technologies:

• Excellent optical system ensures an exquisite image in every detail
• Accurate zoom magnification system
• Stable and lifelong LED illumination
• Elegant and compact design
• Ergonomic binoculars (with 210° movement)

Key Features

Eye Cups

Fold or unfold it, use it to comfort your viewing

Rotatable Handles

360° variable rotation Easy to be placed at any intended position and enables the surgeon to move the microscope head easily

Magnification Changer

Accurate magnification positioning

Technical Data

Microscope System

• Eyepieces: 10X/22B (Aperture:18mm)
• Binoculars: 0~210° inclinable extended tube
• PD adjustable range: 55mm~75mm
• Diopter Range: ±7D
• Magnifications (DOM3000D-4K): 3.6X~23.3X
• Total magnification rate (DOM3000D-4K): ZOOM
• Objective Lens: WD180-460mm
• Diameter of FOV: 65 mm (DOM3000D-4K)

Illumination System

• Light source: LED module, variable brightness, over 60,000h life span
• Minimum illumination intensity (f=250): >80,000lX
• Diameter of illumination spot: 85mm
• Filter: 85mm Orange, Green
• Color temperature: 6500k close to natural light, true color

Support System

• Standard base: Mobile base (white/black)
• Swing arm: Radius gyration: 460mm, 360° rotation
• Microscope arm: Radius gyration:700mm, ±160° rotation, up & down ±315mm
• Longest arm reach: 1390mm
• Dimension of base: 730mm X 730mm or 516*516mm
• Net weight: 120kg

Electric System

• Input power: AC100-250V, 50/60Hz
• Light source max consumption: 20VA
• Total consumption: 70VA
• Fuse: 220V: T1.0AL 250V / 110V: T2.0AL 125V

Image System

• Video resolution: 3840x2160 (4K, The effective number of pixels is 4 times that of 1080P)
• Video frame rate: 30fps@4K
• Resolution of static image: 4000x3000
• Control Method: one-key video recording and camera parameter setting for wireless remote control, mobile phone, tablet computer, foot pedal, small buttons etc.
• Storage media: TF card (maximum supporting 128G)
• Working mode: Single shot, video, continuous shot, time-lapse shot
• Additional features (optional): Support the personalized Settings of camera parameters, RAW format photo storage; multi-point image transmission and receiving function
