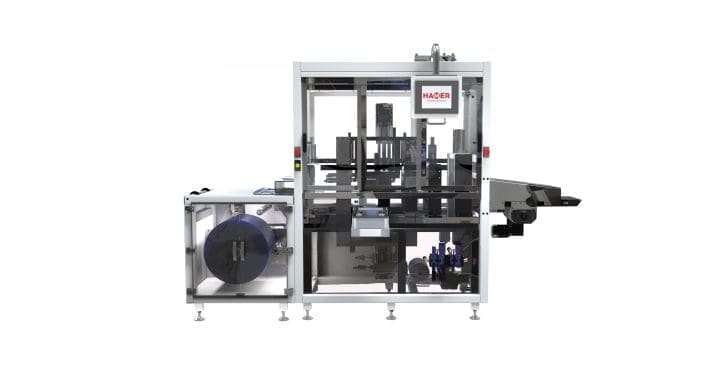

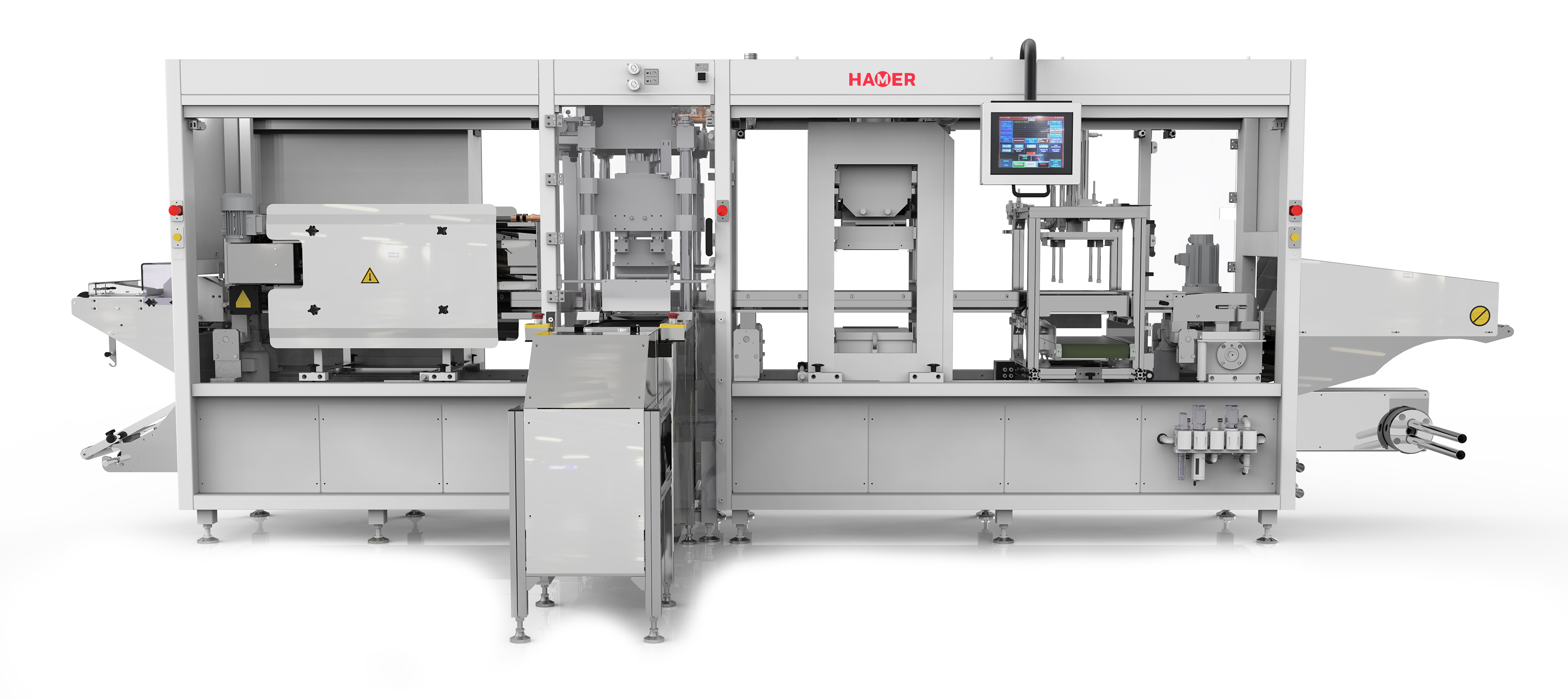

Dental Aligner Forming Machine TVP 25
Hamer Packaging Technology, S.L.
Fully automatic vacuum and pressure thermoforming machine for dental aligners with in-feed carousel for 3D models. Designed to automate all production processes for the manufacture of dental aligners.
Product Information
| Manufacturer | Hamer Packaging Technology, S.L. |
|---|---|
| Weight | 3.800 Kg |
| Stacker | Pneumatical |
| Dimensions | 2.150 mm x 3.200 mm x 6.200 mm |
| Forming Area | 220 x 220 mm |
| Power supply | USA: 480V III + N + G 60Hz, EU: 400V III + N + G 50Hz |
| Heating Power | 10,4 kW |
| Forming Height | 30 mm |
| Forming Tables | Pneumatical/Toggles |
| Max Film Width | 10 inches |
| Min Film Width | 5 inches |
| Trimming Power | 26 Tn |
| Air Consumption | 50 m3/h |
| Trimming Tables | Pneumatical/Toggles |
| Forming Pressure | 10 bars |
| Vacuum Pump Flow | 7,3 m3/h |
| Max Film Thickness | 0.8 mm |
| Production Capacity | 300 to 1.300 units/h |
| Total Installed Power | 20 kW |
| Max Film Roll Diameter | 500 mm |
