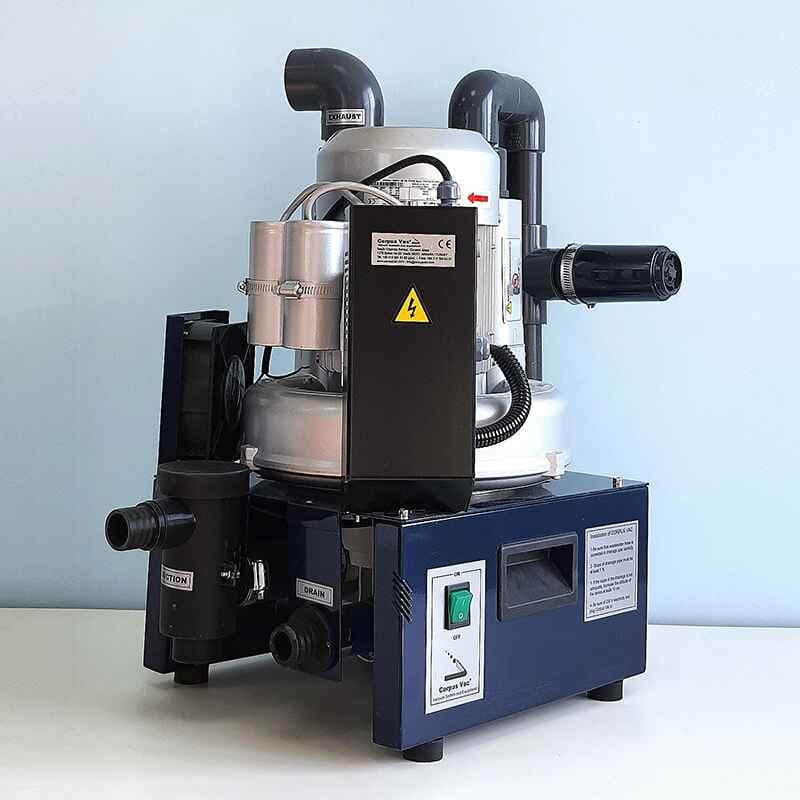

Corpus Vac Direct® System 3/4
CORPUS VAC Vacuum Sistemleri SAN VE TIC.
Model Corpus DIRECT Semi wet Suction System for 3/4 Chair. Automatic suction system with non-stop operation and PCB with delay adjuster system.
Product Information
| Manufacturer | CORPUS VAC Vacuum Sistemleri SAN VE TIC. |
|---|---|
| Depth | 50 cm |
| Width | 37 cm |
| Height | 55 cm |
| Weight | 30 kg |
| Voltage | 104–127 V or 208–254 V |
| Frequency | 50 Hz / 1.100 kW or 60 Hz / 1.300 kW |
| Motor Type | Side Channel Blower |
| Motor Power | 1.100 kW or 1.300 kW |
| Motor Speed | 2800 RPM |
| On Off Type | Automatic by microswitch |
| Sound Level | 65 dB |
| Working Type | Non-stop suction with PCB delay adjuster system |
| Surface Finish | Electrostatic powder painting |
| Vacuum Capacity | 20 liters H2O/minute |
| Motor Capacity Air | 2.000 Liter/minute |
| Current Consumption | 3–3.8 Amps |
| Motor Vacuum Pressure | –150 mbar (±10%) |
| Inlet Outlet Hose Diameter | Standard 30 mm / Optional 40 mm |
