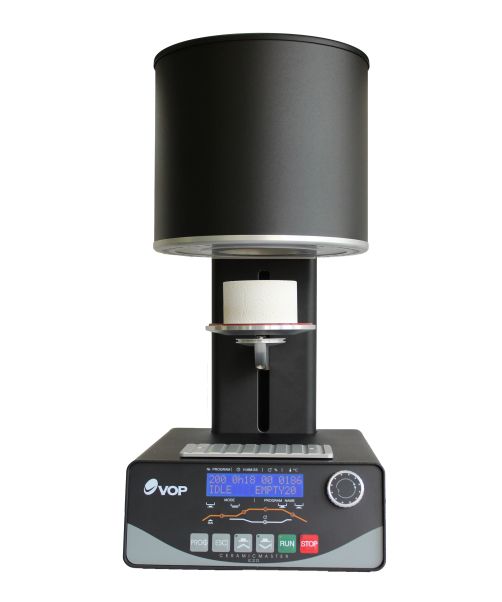

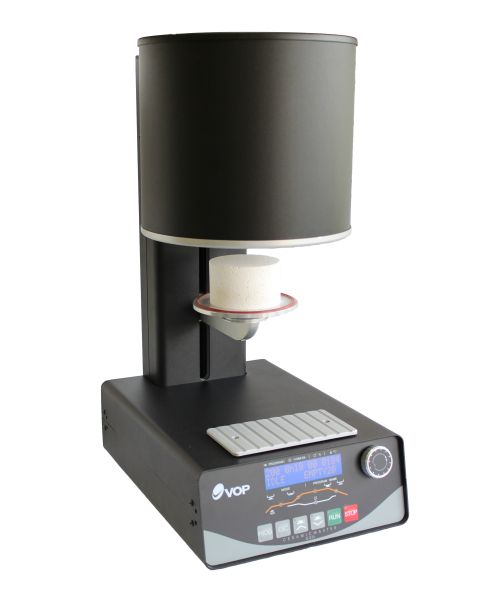

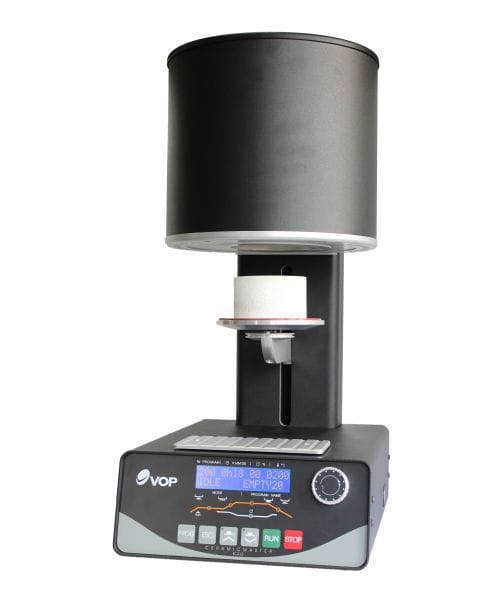

Ceramicmaster E20
VOP Ltd. · #E20 · source
Automatic programmable vacuum furnace for dental ceramics.
- designed for all available types of dental metal ceramics
- 201 operating programs
- completely controlled process - 14 programmable parameters in every program: name, idle temperature, dry temperature, pre drying time, drying time, firing, first cooling time, second cooling time, vacuum control
- improved system of self-diagnostics and auto calibration
- multifunctional handle easy for operation
- a quartz muffle
- an option for automatic continuation of the program after short power breakdown
- an option for transfer of program parameters on USB
- an option for remote analysis of damage
Accessories:
- isolation table, Ref. № 122000025
- firing tray, Ref. № 122000026
- pins, Ref. № 122000027
- Vacuum pump PVM122, Ref. № 032000000
Product Information
| Manufacturer | VOP Ltd. |
|---|---|
| Weight | 24 kg |
| Power supply | ~230 V ±10%, 50/60 Hz |
| Dimensions (w/d/h) | 265/370/565 mm |
| Adjustable Vacuum Range | 0.1 to 0.92 bar |
| Firing Chamber Dimensions | Ф 95 mm, h 60 mm |
| Maximum Firing Temperature | 1200°С |
| Number Of Operating Programs | 201 |
| Vacuum Pump Suction Capacity | 22 l/min |
| Power Consumption (with Vacuum Pump) | 1700 W |
| Power Consumption (without Vacuum Pump) | 1550 W |
