AD-S1（26）modern-type Dental chair

Product Introduction

The AD-S1 Luxury 26 model, based on the fourth-generation dental chair with linkage compensation, is equipped with a brand-new 9-memory setting system and is also available as a doctor's chair and a nurse's chair. It adopts a dual control system design with a 4.3-inch LCD screen specifically designed for medical use, and is equipped with a luxurious silicone pad that can be sterilized at high temperatures and a stainless steel handle bracket. The two-tone super-fine leather seats, paired with lumbar and headrests, offer a significantly higher level of comfort. The product adopts the luxury F02 six-in-one multi-functional foot pedal. The luxury dual-color twelteen-hole small LED invisible oral lamp can achieve manual and sensor bidirectional control functions (with digital display function), and has a freely adjustable light source to achieve anti-curing function. The illuminance is 8000Lux-80000Lux, and the color temperature is 3300K-5700K. The use of it makes the product more durable. The product also adopts an all-aluminum chassis frame and a side box that can rotate 90° (double water bottles), as well as a spittoon equipped with a 304 spittoon handle to avoid cross-infection problems. The luxurious side sub-control system and aluminum base design also achieve the release of four-handed operation space.

Product Features

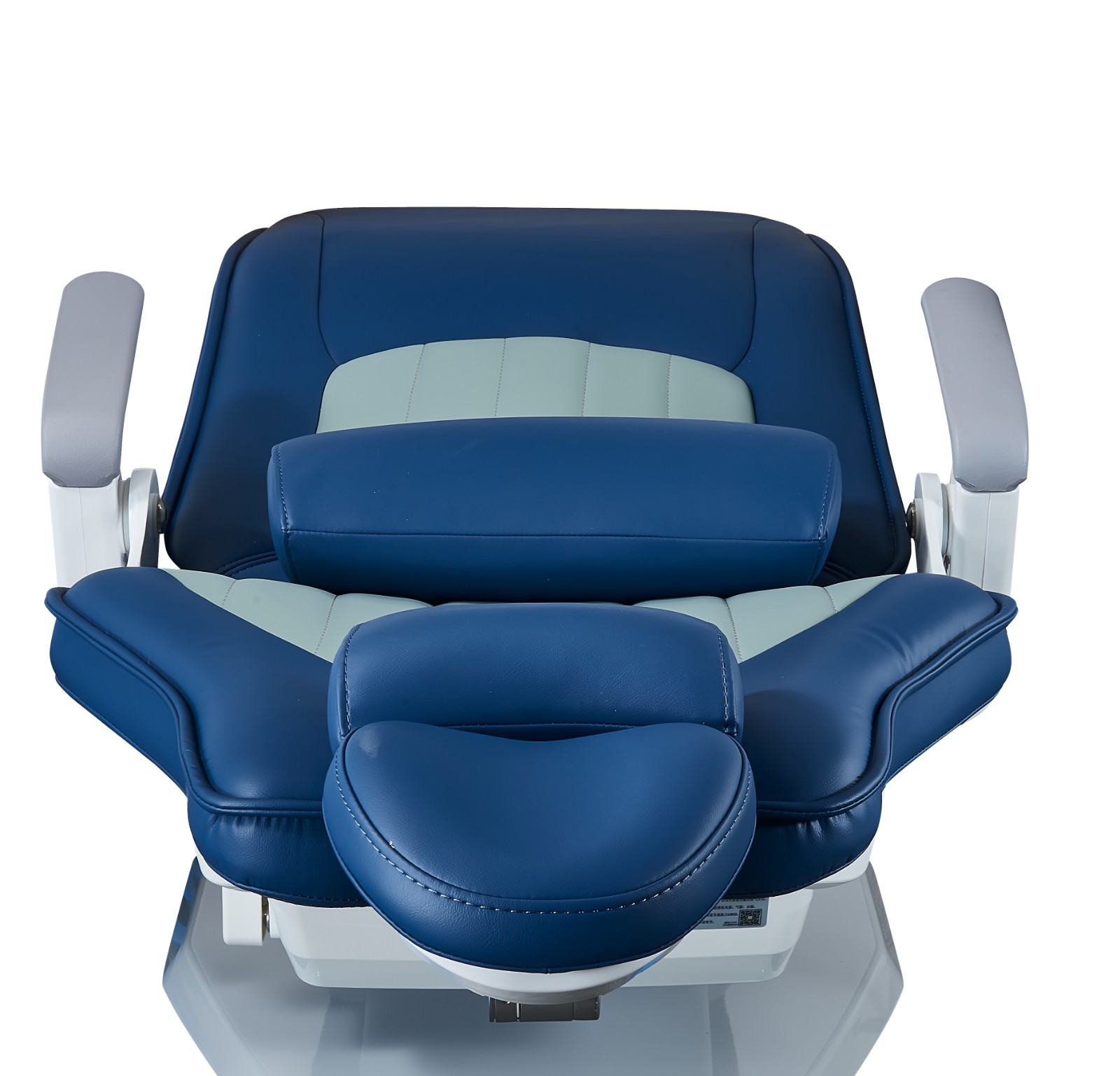

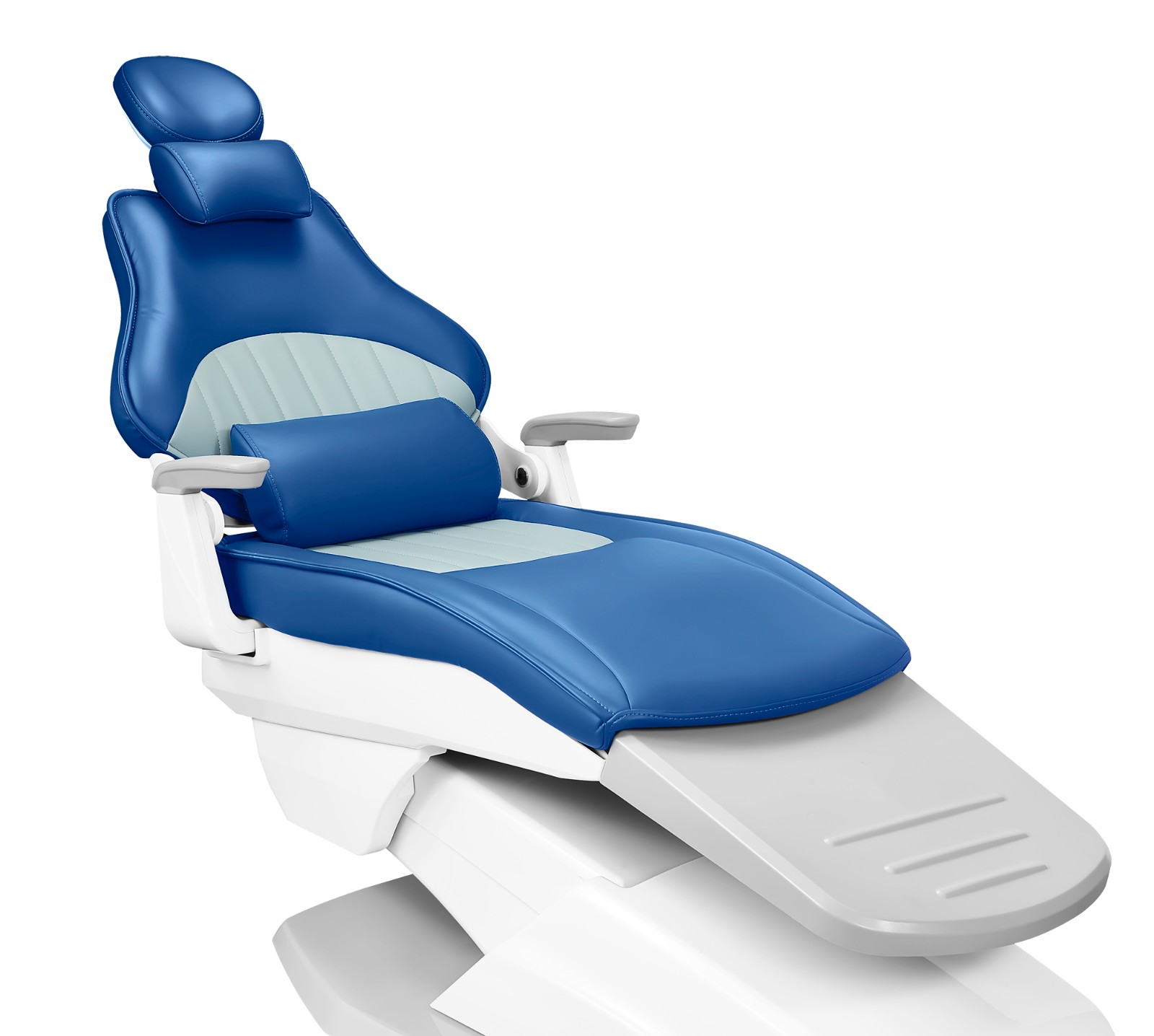

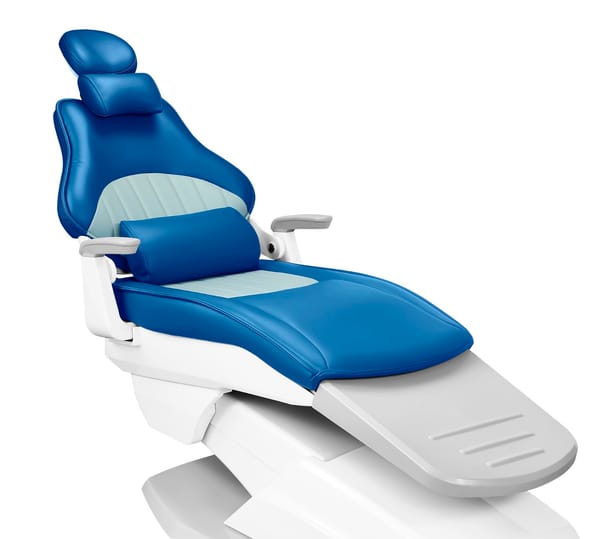

Chair with linkage compensation & doctor's chair + nurse's chair

The leather of the dental chair is made of two-color skin-friendly handcrafted leather. The workmanship uses a sewn process of foam sponge and memory foam. It is also equipped with a lumbar pillow and a headrest, providing better overall comfort. The product is standardly equipped with a luxury doctor's chair (cast aluminum frame) and a nurse's chair. The dual-chair configuration meets the usage requirements for treatment.

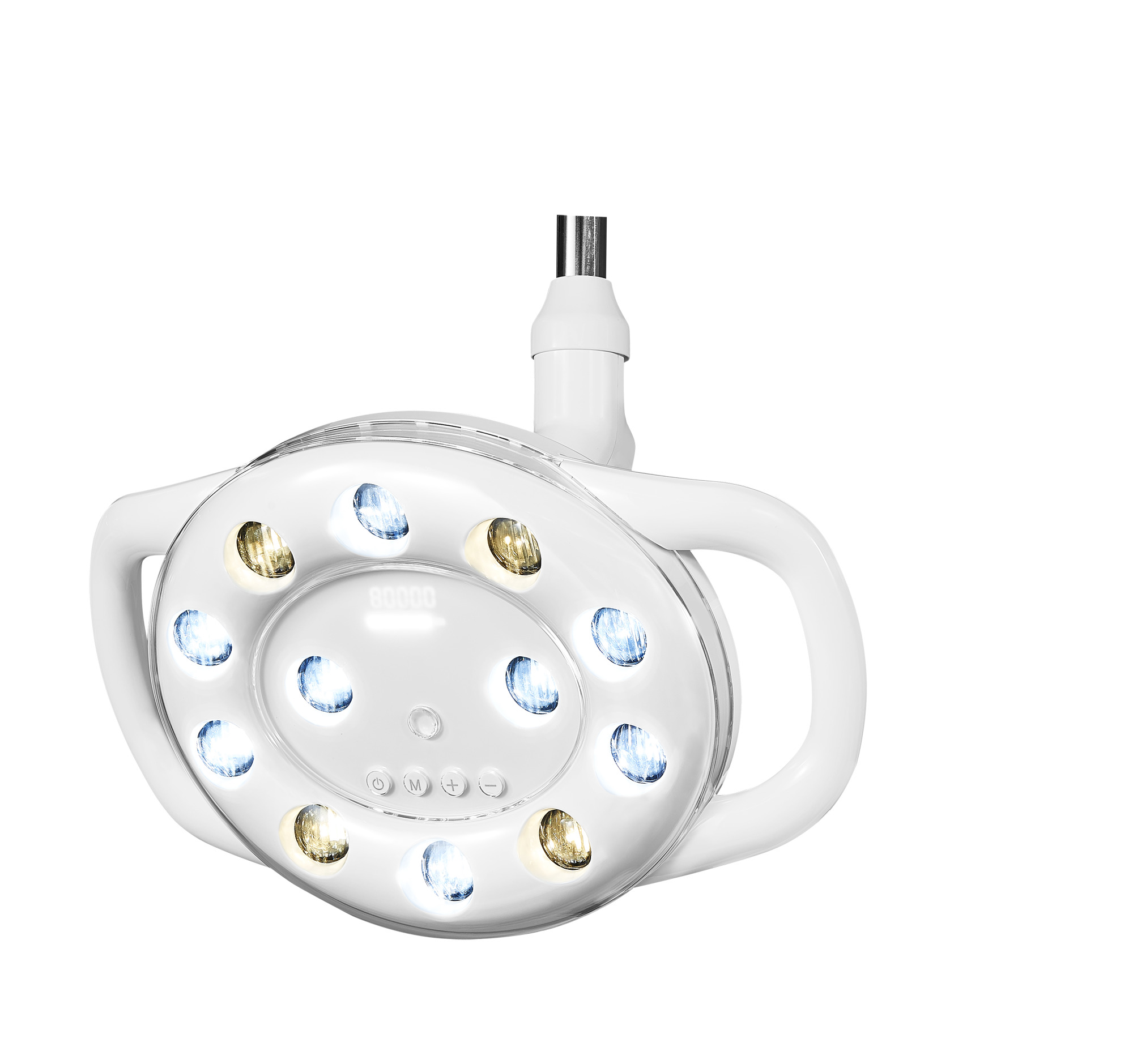

Small shadowless oral lamp

The oral lamp is equipped with a dual-color twelteen-hole small LED shadowless lamp, which can achieve dual control functions of manual and sensor, with digital display and touch key functions. It has the ability to freely adjust the light source and can achieve anti-curing function. The illuminance range is 8000Lux-80000Lux, and the color temperature range is 3300K-5700K.

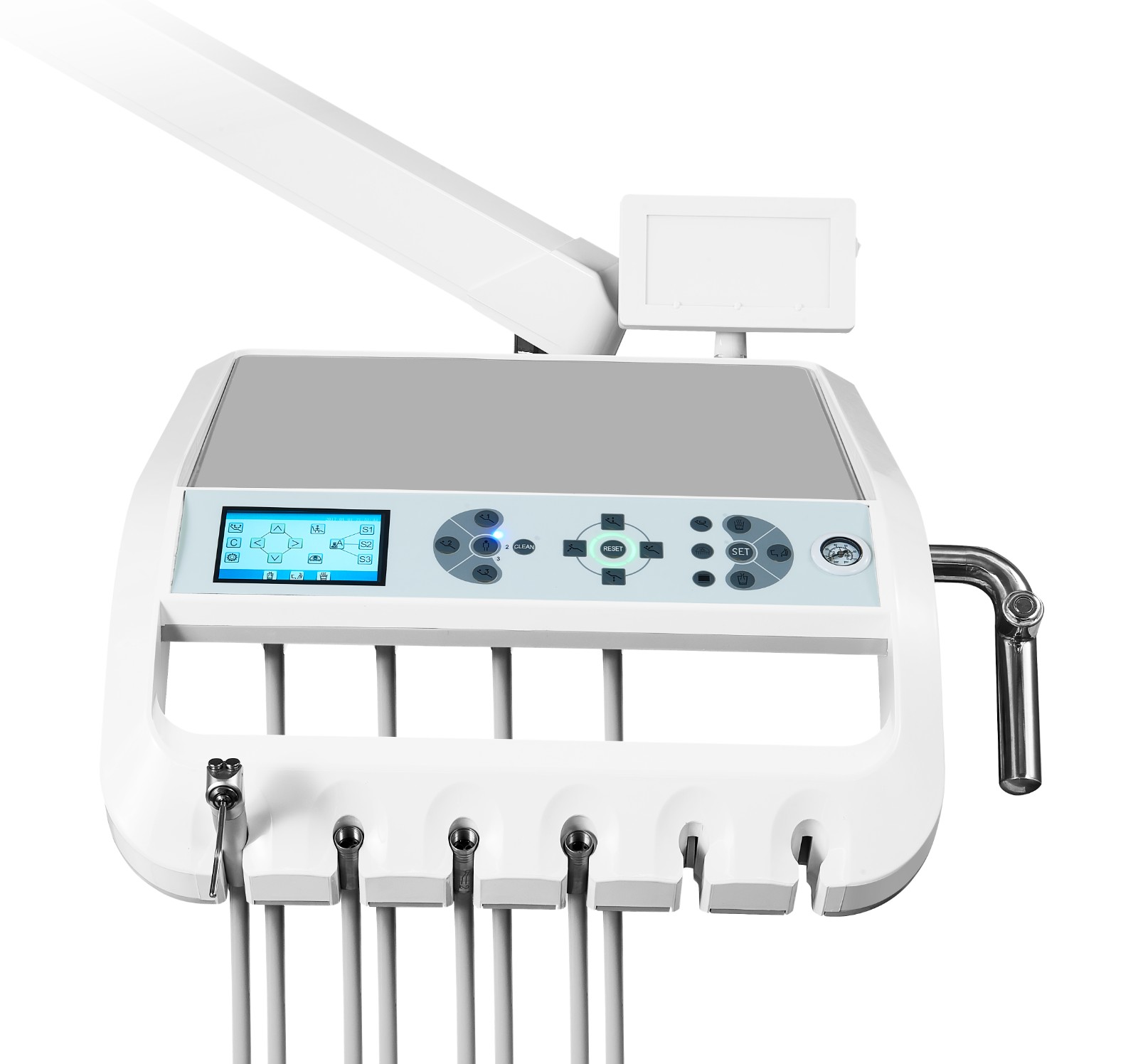

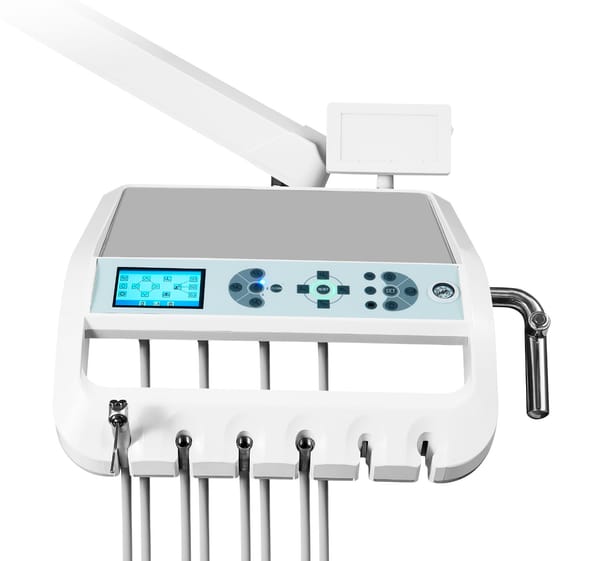

Integrated instrument tray

The main control console adopts an integrated instrument panel and a 4.3-inch touch LCD screen control system design specifically for medical use. It is equipped with an overall coverage of a reusable high-temperature sterilized luxury silicone pad and stainless steel handles, and the pipeline layout is neat and beautiful.

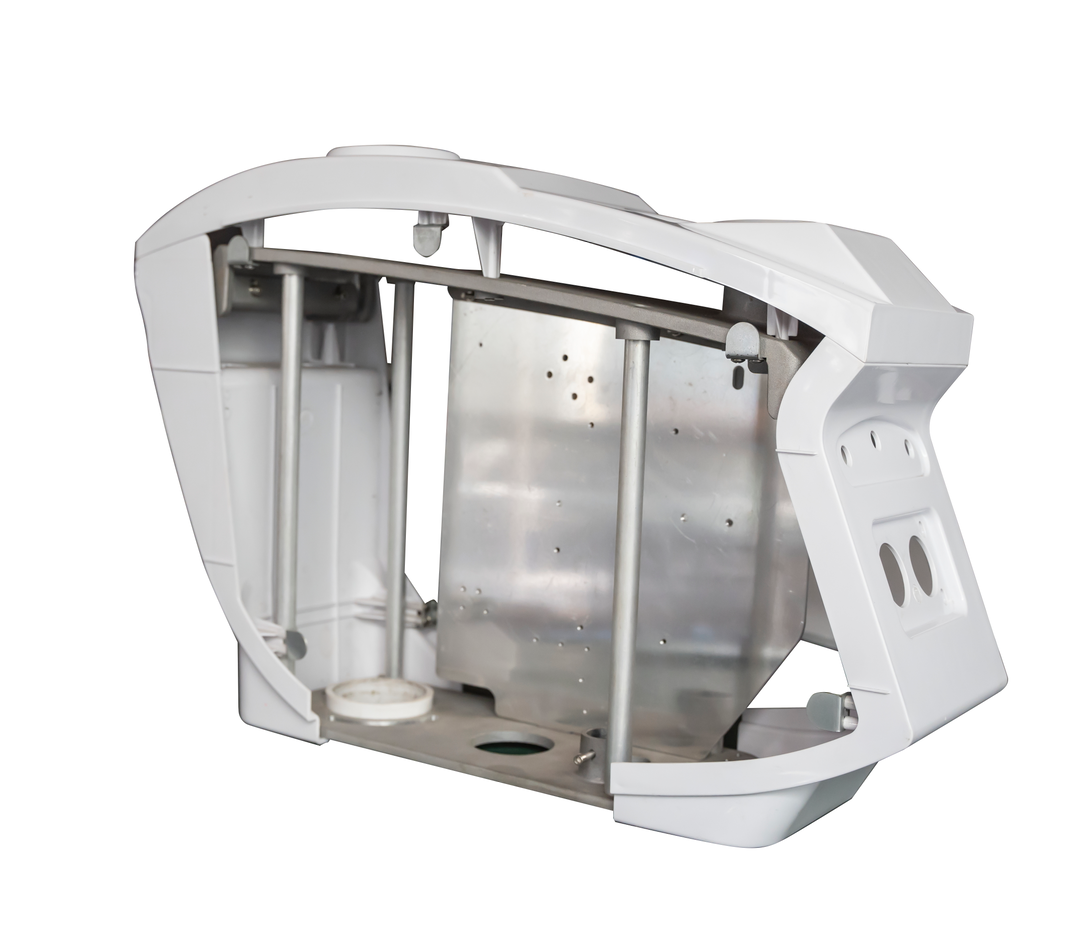

Injection-molded aluminum side box

The side box design adopts an all-aluminum structure and is equipped with a 304 stainless steel spittoon handle bracket. The dual clean water bottle design can effectively meet the daily demand for pure water use and can also be used for disinfecting the product's waterway. With a 90° rotation function, it increases the space for four-handed operation.

Die-cast aluminum backrest support seat

This product features a die-cast aluminum backrest support seat, which is not prone to deformation or rust and has extremely high durability. The backrest connection adopts a three-point connection method, making the backrest more stable during operation. At the same time, the headrest also adopts a one-handed operation full die-cast aluminum material, making it more convenient and durable to adjust.

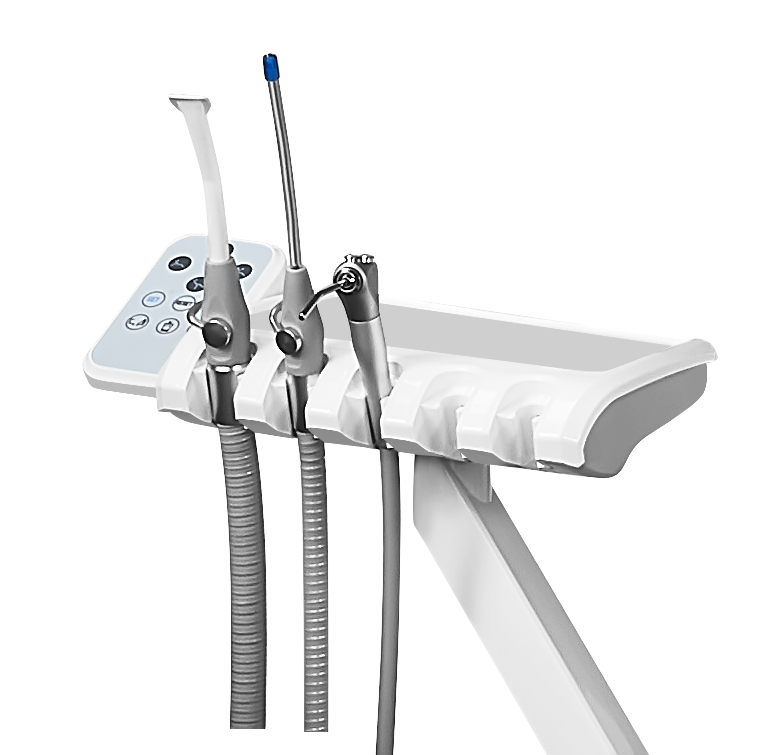

Luxury sub-control system

The sub-control system is equipped with a high-temperature sterilizable silicone handle, German imported strong and weak suction tubes, and a cast aluminum base.

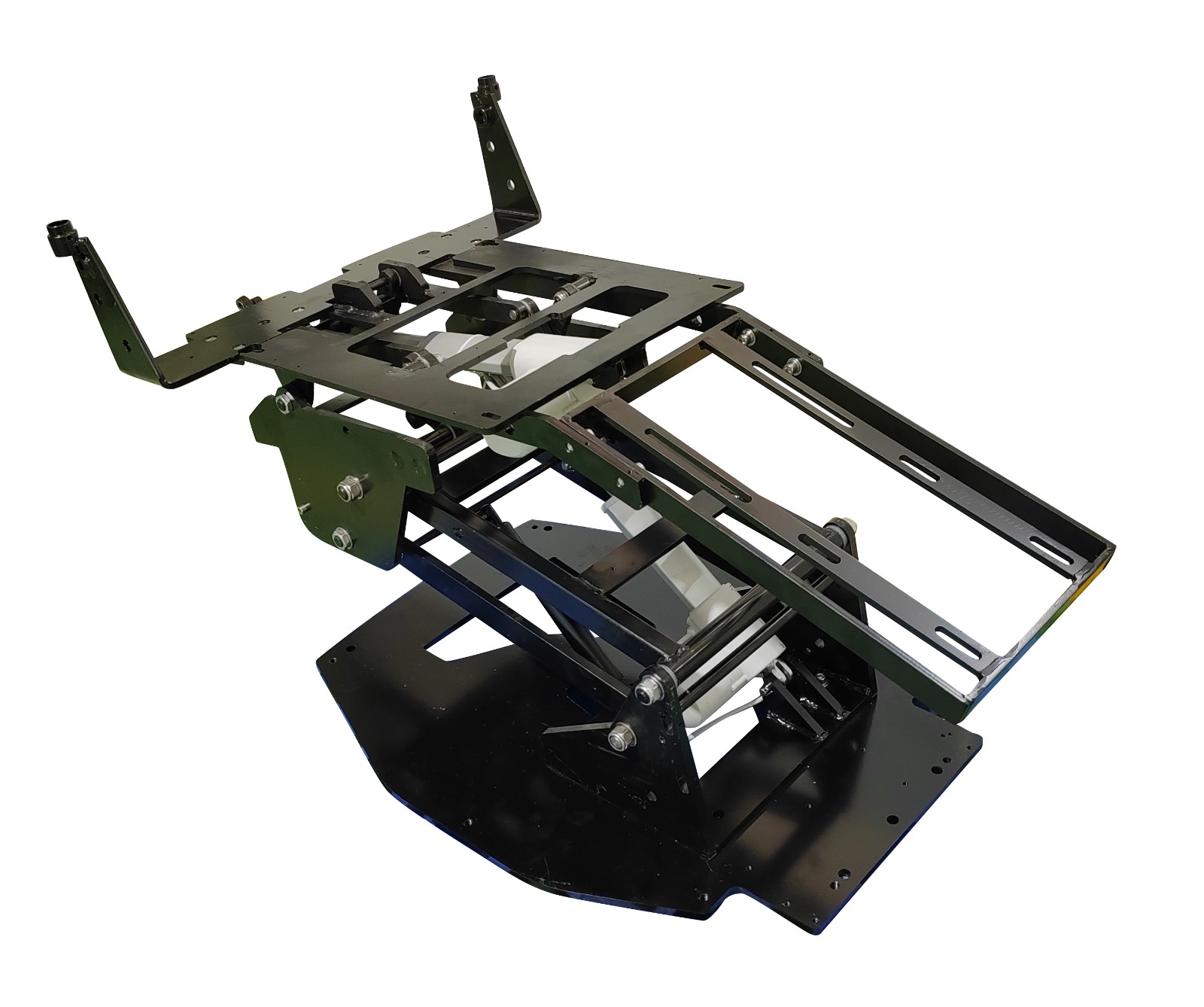

Chair structure

The chair structure adopts a 12MM wide base plate as the support seat, and the net weight of the chair part reaches 115 kilograms, which reduces the degree of shaking during the product's use. In addition, the product also adopts the American J-star brand motor. The lifting motor uses a thrust of 8000 Newtons, and the pitch motor uses a fast thrust of 4000 Newtons. All motors are equipped with pressure-bearing self-locking functions, making the use safer and more reassuring.

Water and gas pipeline

The water and gas pipelines of the entire machine are made of raw materials from BASF in Germany, which are more pressure-resistant and anti-aging, and have a service life of 5 to 10 years.
