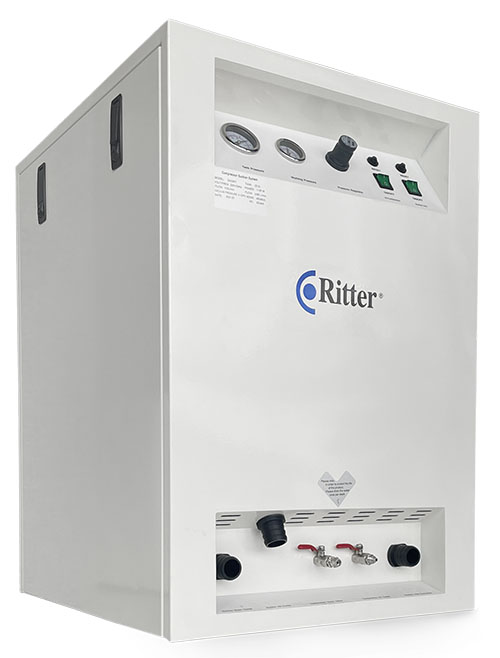

Ritter RACT-SC7/1

Suction and Power System

Combines an air compressor and a suction unit, integrating two different devices, wich can provide both vacuum suction and air supply function. Option to connect to external suction. The Power System is suitable to serve one Dental Unit.

Features:

Power: 1.1 KW
Noise: ≤60 dB(A)
Dimension (l x w x h): 690 x 620 x 1020 mm
Net weight: 81 Kg
Gross weight: 100,2 kg
Use: For single unit

Compressor inside (without dryer)

Power Supply: 100-240V AC 50/60 Hz
Input power: 750 VA
Fuse: 5 A
Dimension (l x w x h): 272 x 138x x215 mm
Pressure: 0.8 MPa
Tank capacity: 25,5 l
Max airflow: 152 l/min
Airflow @7 Bar: 65 l/min
Net weight: 11,5 kg
Noise: 50 dB(A)

Suction inside:

Power supply: 230 V AC
Frequency: 50/60 Hz
Input power: 370 VA/450 VA
Max Currency: 2.7 A/3 A
Dimension (l x w x h): 256 x 246 x 247 mm
Negative Pressure: ≥–12 kPa
Max Airflow: 1333 l/min
Net weight: 11 kg
Noise: 60 dB(A)
